Os M60 250w 280w Monocrystalline Photovoltaic Module - China

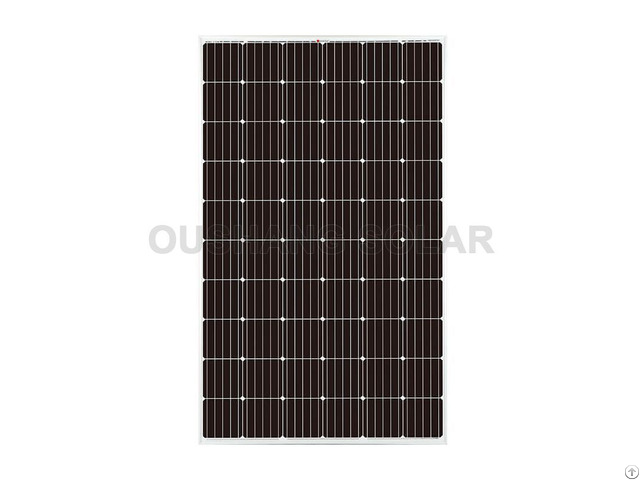

OS-M60-250W~280W Monocrystalline Photovoltaic Module 60 cells solar panel manufacturer Key Parameters

Cell Mono

No.

of cells 60

Rated Maximum Power (Pmax) 250W~280W

Junction Box IP67

Maximum System Voltage 1000V DC

Operating Temperature -40℃～+85℃

Connectors MC4

Model OS-M60-250 OS-M60-270 OS-M60-280

Cell MONO MONO MONO

Max Power 250W 270W 280W

Max Power Voltage 30.5V 31.5V 31.5V

Max Power Current 8.20A 8.57A 8.89A

Open Circuit Voltage 36V 38.05V 38.86V

Short Circuit Current 9.02A 9.08A 9.22A

Number of Cells 60(6*10) 60(6*10) 60(6*10)

Size of Cells (mm) 156*156 156*156 156*156

Dimensions(mm) 1640*992*35 1640*992*35 1640*992*35

Maximum system voltage 1000VDC

Junction Box Protection IP67

Cables 4mm2

Connector MC4

Max wind load 2400Pa

Max snow load 5400Pa

Operating Temperature -40℃~+85℃

Power Tolerance ±3%

Hebei Oushang Photovoltaic Technology Co., Ltd has focus on solar panel production in China since 2014 - The auto production is able to supply three containers per day.

We have shipped thousands of containers of solar panels to all over the world.

Our products are exported to Europe, Middle East, South America, Southeast Asia and Africa.

The factory and products are qualified by TUV.

Company Contact:

• Posted By: Hebei Oushang Photovoltaic Technology Co., Ltd

• Phone: 8619930586507

• Address: The Northwest Corner Of Dazhao Village, Hequ Town, Xingtai , Hebei , China

• Email:

• Website: https://www.oushangsolar.com/

• Business Description: Hebei Oushang Photovoltaic Technology Co., Ltd. is one of top photovoltaic module manufacturer in China and has annual production capacity of 500MW.

  Our factory is located in Hebei Province, China and covers 50000 square meters land.

  OUSHANG SOLAR has engaged in R&D, production and sales of solar module products many years.

  The power range of our solar panels is from 5W to 550W.

  Products cover monocrystalline solar panel, polycrystalline solar panel, half cell solar modules, solar controller, solar inverter, solar gel battery, solar flood light, solar street light, solar monitor system and etc.

  We offer OEM service.

  There is the advanced automatic production line in our factory.

  We use strict production technology and quality control system to ensure the quality of manufactured products perfect.

  The quality inspection follows ISO9001 standard.

  The solar module products of our company have passed the TUV, SGS, CE, SONCAP, CQC test.

  Our factory has passed the Intertek inspection.

  Our reliable solar panels have been proven to perform in diverse climates and environments all over the world under the sun.

  More than 20GW has shipped to Africa, Europe, Middle America, Middle East, Southeast Asian.

  OUSHANG SOLAR is one of top photovoltaic module manufacturer in China and has annual production capacity of 500MW.

  Our solar panel products range is from 5W to 500W.

  Products cover monocrystalline solar panel, polycrystalline solar panel, half cell solar modules, solar controller, solar inverter, solar gel battery, solar flood light, solar street light, solar monitor
