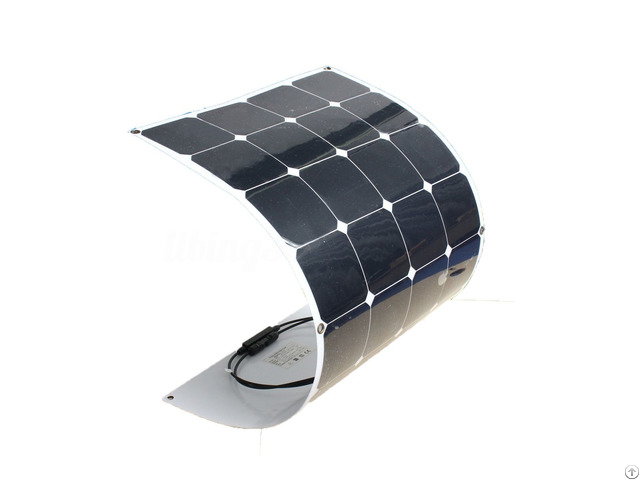

Flexible Monocrystalline Module - China

210-215 Watt 48 Cell Monocrystalline Module

MS-MFSP215M-4X12 Features

Ultra-light: Through replacement of the glass and optimization of theframe weighs as 70% less than conventional PV panels.

Aesthetics: Aesthetically pleasing design with patented materials and sophisticated manufacturing process results in a high-efficiency, attractive panel, with no light pollution and high levels of safety.

Easy Installation: It can reduce installation cost significantly through the use of re-engineered components, ease of handling and faster in-stallation.

No-glass: No fragile glass design lead to PID-free and more safety in handling, transportation, installation and operation.

Transportation: Its innovative frame and low weight will very significantly reduce the cost of transportation.

Deployment: Ultra-light weight and customizable size make it the best choice to change the way how solar is deployed in the market and bring added value to special applications.

Durability: The panels are certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal), while special materials and stringent quality control ensure panel longevity.

MS-MFSP215M-4X12

MS-MFSP210M-4X12

Electrical Characteristics

STC MFSP215M-4X12 MFSP210M-4X12

Maximum Power (Pmax) 215 210

Maximum Power Voltage (Vmp) 25.7 25.4

Maximum Power Current (Imp) 8.37 8.27

Open-circuit Voltage (Voc) 31.0 30.8

Short-circuit Current (Isc) 8.83 8.73

Module Efficiency (%) 16.5 16.2

Operating Temperature (℃) -40 ℃ to 85 ℃

Maximum System Voltage 600 V DC (IEC)

Maximum Series Fuse Rating 20 A

Application Class Class A

Power Tolerance 0/+5 W Mechanical Characteristics

Solar Cell Monocrystalline silicon (6 inches)

No.

of Cells 48 (4×12)

Module Dimensions 1955×665×20 mm (77.0×26.2×0.8 inch)

Weight 5.2 kgs (11.5 lbs)

Backsheet WhiteFrame Black Anodized Aluminium Alloy

J-box IP 68 rated

Output Cables Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm

Connector MC4 compatible
