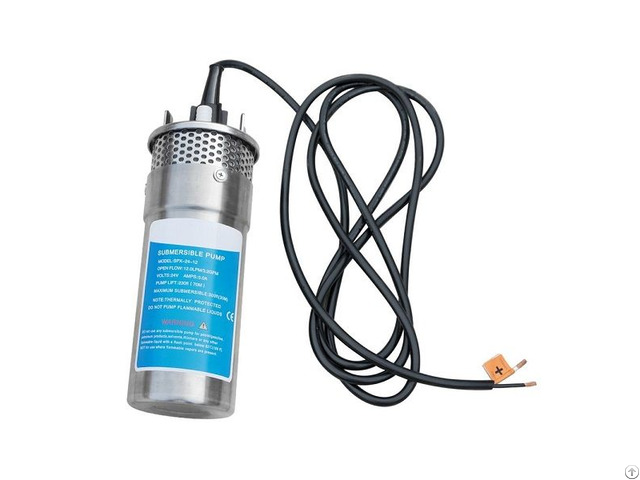

Dc 24v Stainless Steel Submersible Deep Well Solar Water Pump - China

The submersible pump is the solution to your remote water pumping needs.

This pump is rugged, durable and built to last.

Its unique water-tight power connector stops water wicking and prevents potential condensation problems.

Great for livestock watering, irrigation, pond aeration, remote homes and cabins – any place where potable water is needed.

Features

1 - Ideal for livestock watering, irrigation, 4” deep wells or larger, remote home and cabin.

Quick disconnect with ”watertight-gland” design pat pend.

2 - Corrosion-proof housing with stainless-steel fastener, state of the art solid diaphragm.

3 - Positive displacement 3 chamber diaphragm pump.

4 - Overcurrent, over temperature protection, low noise, acid alkali, corrosion resistance.

5 - Designed to be used with solar panels and 24V battery systems, easy hookup to most any existing solar panels or wind generator systems.

Specification

Model: SPX-24-12

Cable: 10 feet (3m)

Voltage: 24V DC

Amps: 5A

Flow Rate(lph/gph): 12.0LPM/3.2GPM

Maximum Lift: 230 Feet (70 Meters)

Maximum Submersion: 100 Feet (30 Meters)

Material: Stainless Steel Sheel

Inlet: 50 Mesh Stainless Steel Screen

Outlet Port: 1/2″ (12.7mm) Barbed Fitting

Internal Bypass: 105-110 PSI Max(7.2-7.5BARS)

Motor: Permanent Magnet Thermally Protected

Pump Design: Positive Displacement 3 Chamber Diaphragm Pump

Size: 15.15″x5.39″x4.52″ (385*137*115mm) Application

Great for livestock watering, irrigation, pond aeration, remote homes and cabins – any place where potable water is needed.
