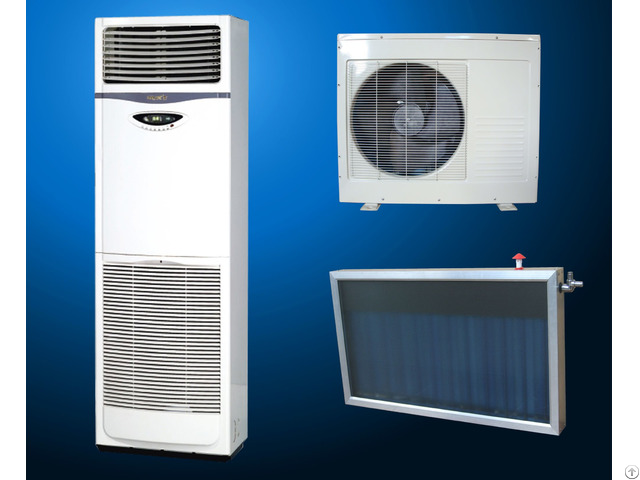

Cabinet Floor Solar Air Conditioner - China
price: 2928.00 Dollar US$
MS(R)-72LW
Floor standing type solar AC.
Specification:
• Power Supply：220-240VAC, 1PH, 50Hz
Model No.
MS(R)-60LW MS(R)-72LW MS(R)-100LW MS(R)-120LW MS(R)140LW
Performance
Capacity Cooling Btu/h 20000 24000 36000 41000 48000 W 6000 7200 10000 12000 14000
Heating Btu/h 22000 27000 40000 46000 55000
W 6600 7900 12000 14000 16000
Noise Indoor dB(A) ≤47 ≤51 ≤51 ≤53 ≤53
Outdoor dB(A) ≤56 ≤58 ≤58 ≤60 ≤60
Air Circulation m³/h 800 1250 1700 1800 1900
Suitable Area m² 25~42 30~48 42~67 50~80 58~93
EER W/W 3.88 3.82 3.87 3.96 3.87 Btu/h/w13.24 13.03 13.2 13.51 13 Power Consumption
Power Input Cooling W 1350~1560 1700~1900 2400~2640 2900~3150 3500~3740
Heating W 1350~1590+350 1700~1950+350 2470~2650+350 2900~3180+350 3500~3760+350
Rated Current Cooling A 6.14~7.09 7.73~8.64 10.91~11.95 13.18~14.32 15.91~17
Heating A 6.14~7.23+1.6 7.73~8.66+1.6 10.91~12.05+1.6 13.18~14.45+1.6 15.91~17.09+1.6
Vacuum Tube(mm)
D*L*Pcs 47*620*11 47*620*11 47*700*13 47*1200*13 47*1200*13
Dimensions
Indoor Unit Net mm 490*280*1730 550*300*1790 550*300*1790 550*390*1790 550*390*1790
Shipping mm 580*390*1790 630*380*1900 630*380*1900 630*470*1900 630*470*1900
Outdoor Unit Net mm 850*300*755 940*300*755 950*355*835 950*355*1255 950*360*1255
Shipping mm 950*400*770 990*400*770 1140*460*910 1140*460*1340 1140*460*1340
Water Tank Shipping mm
980*400*370 980*400*370
1105*400*325 1120*400*400 1120*400*400
Vacuum Tube Shipping mm 765*280*205 1270*280*210 1270*280*210
Weight
Indoor Unit Net/Gross kg 39/42 43/47 44/48 51/55 52/56
Outdoor Unit Net/Gross kg 50/52 55/58 73/76 95/100 97/102
Solar Collector Net/Gross kg 16/17 16/17 18/21 23/26 23/26
Loading Qtyin 20feet sets 33 31 27 18 18 40HQ sets 82 76 66 45 45
