900w 24v Polycrystalline Off Grid Solar Panel Kit For Homes Rvs - China

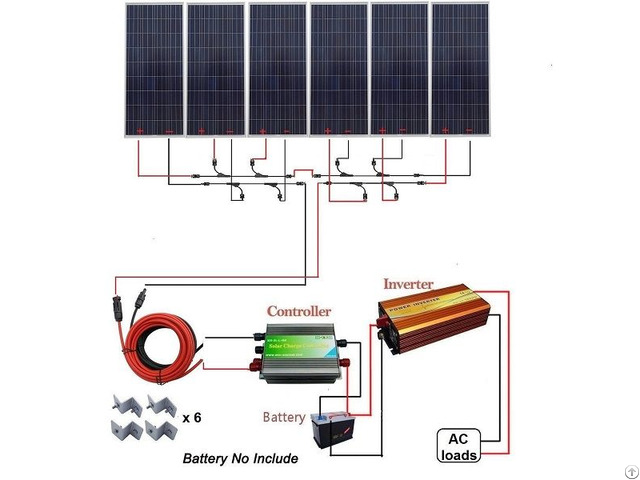

The Eco-Sources completed off-grid solar panel kit composed of 6pcs 150W poly solar panels, 1pc 45A charge controller, 1pc 1500W pure sine wave inverter, 1pc solar cable, MC4 Branch connectors, 6 pcs mounting Z brackets, It’s a perfect off-grid solar power system for homes, RVs, trailers, motorhomes, caravans, boats and industrial energy supplementation.

Features

1 - Complete 24 volts off-grid solar power kit for charging 24 volts battery bank and DC/AC appliances.

2 - High-efficiency silicon solar cells ensure high performance of solar modules and create maximum power output.

25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate.

3 - Easy to install with pre-drilled holes on the back of panels for fast mounting and securing.

Each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors.

4 - By-pass diodes are pre-installed in the waterproof IP-65 rated junction box to minimize power drop caused by shade and ensure excellent performance in low-light environments.

Specification

150W Poly Solar Panel Rated power: 150W

Open circuit voltage (Voc): 22.4V

Max.

Voltage (Vmp): 18V

Short circuit current (Isc): 9.20A

Max.

current (Imp): 8.33A

Cell Efficiency(nc): 17%

Cell Size: 6*6inches/156*156mm

Number.

type and arrangement of cells: 36pcs Poly-Crystalline Silicon(4*9)

Module Efficiency(nm): 15.1%

Max-System Voltage(VDC): 1000v

Output Power Tolerance: ±3%

Temperate coefficient of Isc: +0.05%/ ℃

Temperate coefficient of power Voc: -0.38%/℃

Operating Temperature range: -40℃~+90℃

SLA Battery Voltage: 12V

Size: 59.1″*26.4″*1 .

6″ (1500*670*40mm)

Weight: 26.5lbs/12kg


Cable Length: 35.4inches/900mm 1500W Off Grid Pure Sine Wave Inverter Output Volt: 100/110/120VAC

Continuous Power: 1500W

Surge Power: 3000W

FREQUENCY: 60Hz

Efficiency: >90%

USB Output: 5V

Input Range: 21-30VDC

Working Input: 24VDC

Fuse: 20A

Low battery alarm: 21+0.5V

Low battery shut down: 20+0.5V

Over voltage shut down: 30.5+0.5V

Overload shut down: 1800W over 10 seconds

Overheating shut down: >75℃

Over Thermal Protection: shut down the output

Working Temperature: -10℃~+50℃ 45 A PWM Solar Charge Controller Regulator with timer and light sensor

maximum charging current: 45A

maximum loading current: 45A

Rated voltage: 12/24v

temperature compensation: -4.7mv/cell· °C

environment temperature: -20 °C ~ +50 °C

working tacitly approved: charge off voltage 13.8v/27.6v (±0.2)

load off voltage: 10.8v/21.6v (±0.2)

load on voltage: 12V / 24V (±0.2)

Connection: The charge controller has 3 pairs of 2 terminals, Solar, Battery and Load, pls connect your battery to Battery terminals, the Load terminals to DC loads you might have, and your PV array to the Solar terminals.

Installation

1 - Connect your 24 volts battery bank to the Battery terminals of charge controller.

2 - Connect the DC load you might have to the Load terminals of charge controller.

3 - Connect PV (Solar) array to Solar terminals of the controller.

4 - Connect DC terminals of the inverter to your battery.

5 - Connect AC output of the inverter to your AC appliances.
