450w Polycrystalline Off Grid Solar Panel Kit With Combiner Box - China

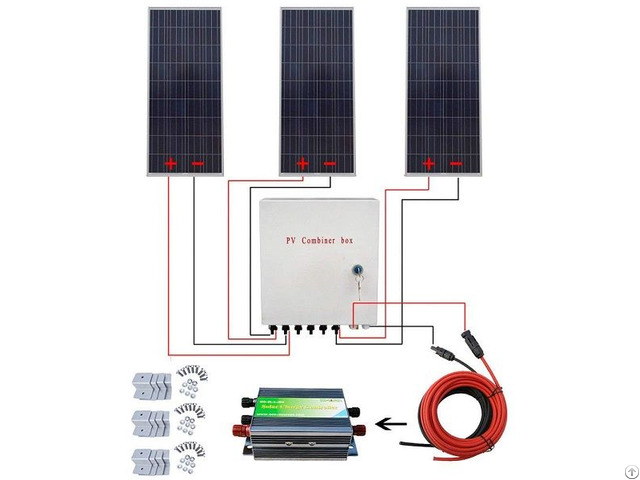

The Eco-Sources complete 450W polycrystalline off-grid solar panel kit composed of 3 pcs 150W poly solar panel with MC4 connector, 3 sets Z style mounting kit, 1 pc 45A solar controller, 1pc 16 feet red and 1pc 16 feet black cable, 1 pc 6-string solar power combiner.

Perfect for RVs, cabins, homes, boats, back-up and remote power use.

Features

1 - High conversion efficiency 150-watt polycrystalline solar panel for RVs, cabins, homes, boats, back-up and remote power use.

Perfect for 12-volt battery charging or multiple panels can be wired in series for 24/48-volt battery charging or for grid-tied applications

2 - Easy to install with pre-drilled holes on the back of panels for fast mounting and securing.

Each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors.

3 - By-pass diodes are pre-installed in waterproof IP-65 rated junction box to minimize power drop caused by shade and ensure excellent performance in low-light environments.

4 - Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).

5 - One year warranty, please feel free to contact us if there are any questions.

Specification

150W Poly Solar Panel Specification Rated power: 150W

Open circut voltage (Voc): 22.4V

Max.

Voltage (Vmp): 18V

Short circuit current (Isc): 9.20A

Max.

current (Imp): 8.33A

Cell Efficiency(NC): 17%

Cell Size: 6*6inches/156*156mm

Number.

type and arrangement of cells: 36pcs Poly-Crystalline Silicon(4*9)

Module Efficiency(nm): 15.1%

Max-System Voltage(VDC): 1000v

Output Power Tolerance: ±3%

Temperate coefficient of Isc: +0.05%/ ℃

Temperate coefficient of power Voc: -0.38%/℃

Operating Temperature range: -40℃~+90℃

SLA Battery Voltage: 12V

Size: 59.1″*26.4″*1 .

6″ (1500*670*40mm)

Weight: 26.5lbs/12kg


Cable Length: 35.4inches/900mm 45A PWM Charge Controller Maximum Charging Current: 45A

Maximum Loading Current: 45A

Rated Voltage: 12V/24V

Temperature Compensation: -4.7mv/cell• °C

Charging Circuit Voltage: <200mv

Environment Temperature: -15°C~+60 °C

Working Tacitly Approved: Charge Off

Voltage: 13.7V/27.4V

Load Off Voltage: 10.5V/21V

Load On Voltage: 12.6V/25.2V

MAX Solar Panel: 540W/1080W

Waterproof Class: IP22 PV Combiner Box Model: ECO—PV6

Number of Max.

connection PV array: 6

Max.

input current of Single PV array: 10A

Total input current of PV array: 60A

Max.

input voltage of Single PV array: 250V

Max.

output power voltage: 250V

Waterproof class: IP65

Working temperature: -30~+70℃

Rated moisture: 0-95%

Cooling methods: Self-cooling

SPD(Surge Protective Device): Yes

Combiner Box Dimension: 260*320*115mm (10.3’’ x 12.6’’ x 4.5’’)

Combiner Box Weight: 4.825KG
