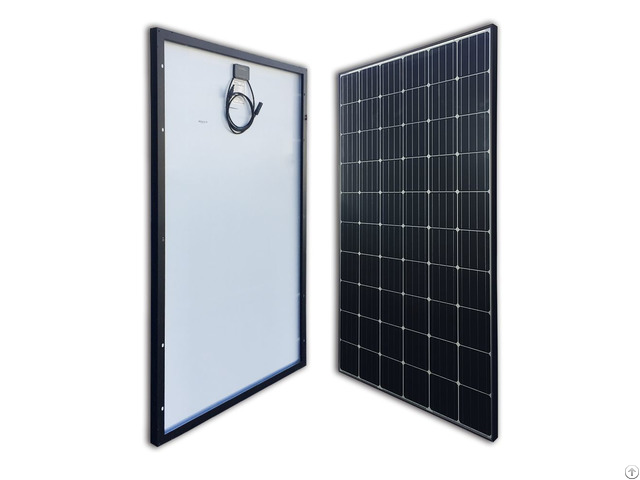

320w Mono Perc Solar Module - China

MSM60S01 300-320/PR Series Introduction

Powered by high-efficiency PERCIUM cells, this series of high-performance modules provides the most cost-effective solution for lowering the LCOE of any PV systems large or small.

Comprehensive Certificates IEC 61215, IEC 61730, UL 1703, IEC TS 62804, IEC 61701, IEC 62716, IEC 60068-2-68 ISO 9001: 2015 Quality management systems ISO 14001: 2015 Environmental management systems OHSAS 18001: 2007 Occupational health and safety management systems IEC TS 62941: 2016 Terrestrial photovoltaic (PV) modules – Guidelines for increased confidence in PV module design qualification and type approval Superior Warranty 12-year product warranty 25-year linear power output warranty SPECIFICATIONS

Cell Mono

Weight 18.2kg±3%

Dimensions 1650mm×991mm×35mm

Cable Cross Section Size 4mm²

No.

of cells 60(6x10)

Junction Box IP67, 3 diodes MC4 Compatible(1000V) Connector QC 4.10-35(1500V)

Packaging Configuration 30 Per Pallet ELECTRICAL PARAMETERS AT STC

TYPE

MSM60S01 MSM60S01 MSM60S01 MSM60S01 MSM60S01 -300/PR -305/PR -310/PR -315/PR -320/PR

Rated Maximum Power(Pmax) [W] 300 305 310 315 320

Open Circuit Voltage(Voc) [V] 39.85 40.05 40.30 40.53 40.80

Maximum Power Voltage(Vmp) [V] 32.26 32.57 32.84 33.16 33.48

Short Circuit Current(Isc) [A] 9.75 9.85 9.91 9.98 10.05

Maximum Power Current(Imp) [A] 9.30 9.37 9.44 9.50 9.56

Module Efficiency [%] 18.3 18.7 19.0 19.3 19.6

Power Tolerance 0~+5W

Temperature Coefficient of Isc(α_Isc) +0.060%/℃

Temperature Coefficient of Voc(β_Voc) -0.300%/℃

Temperature Coefficient of Pmax(γ_Pmp) -0.380%/℃

STC Irradiance 1000W/m², cell temperature 25℃, AM1.5G

Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.

They only serve for comparison among different module types.
