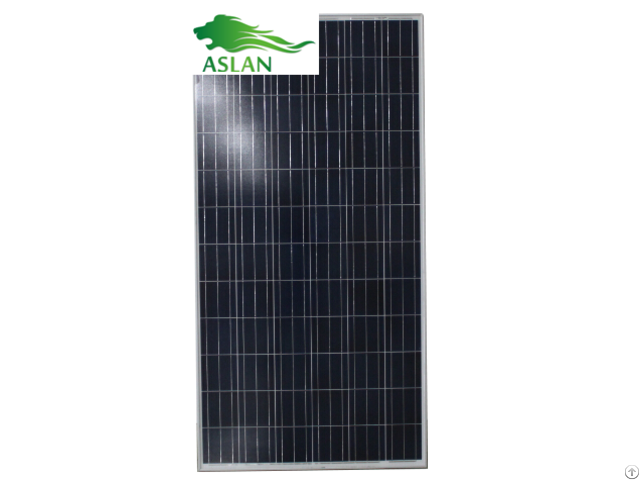

300w Poly Solar Cells Low Price - China

Established in 2009, Ningbo Aslan Import and Export Co., Ltd(Brand ASLAN) is a profess

ional manufacturer of solar panels.

Our products include both Mono-crystalline and Poly-

crystalline types, items range from 0.1Wp to 300Wp.

Since 2009, we’ve been exporting to more than 20 countries, including Asia, Middle East, Africa, South America, Australia, etc.

And our solar panels/solar modules are widely used around the world on solar home

systems, solar power plants, solar street lighting systems, solar water pumping systems, solar lanterns, solar garden lights, solar traffic lighting systems, etc.

Welcome to join us!

Technical parameter

Maximum Power(W) 300W

Optimum Power Voltage(Vmp) 37.15V

Optimum Operating Current(Imp) 8.08A

Open Circuit Voltage(Voc) 45.30V

Short Circuit Current(Isc) 8.87A

Mechanical Characteristics

Cell Type Polycrystalline 156x156mm (6 inch)

No of Cell 72 (6x12pcs)

Dimensions 1956x992x50mm

Weight 22.5Kg

Front Glass 3.2mm, High Transmission, Low Iron, Tempered Glass

Junction box IP65 Rated

Output Cable TUV 1x4.0mm2/UL12AWG, Length: 900mm

Temperature and Coefficients

Operating Temperature(°C): -40°C ~ + 85°C

Maximum System Voltage: 600V(UL)/1000V(IEC) DC

Maximum Rated Current Series: 15A

Temperature Coefficients of Pmax: -0.47%

Temperature Coefficients of Voc: -0.389%

Temperature Coefficients of Isc: 0.057%

Nominal Operationg Cell Temperature (NOCT): 47+/-2°C
