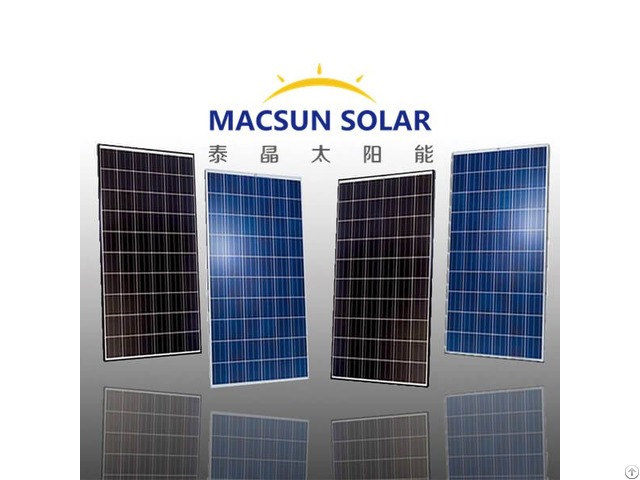

280w Poly Crystalline Solar Module Msp60s01 260 280 Sc Series - China

Electrical parameters at stc type msp-260 msp-265 msp -270 msp-275 msp-280 rated maximum power(pmax) [w] 260 265 270 275 280 open circuit voltage(voc) [v] 37.74 37.95 38.17 38.38 38.65 maximum power voltage(vmp) [v] 30.71 30.92 31.13 31.34 31.61 short circuit current(isc) [a] 9.04 9.11 9.18 9.29 9.37 maximum power current(imp) [a] 8.47 8.57 8.67 8.77 8.86 module efficiency [%] 15.9 16.2 16.5 16.8 17.1 introduction this time-tested legacy module series has been proven to be one of the powerful and most reliable products offered by macsun solar and the most popular choice by pv system installers and customers around world.

comprehensive certificates 1)iec 61215, iec 61730, ul 1703, iec ts 62804, iec 61701, iec 62716, iec 60068-2-68 2)iso 9001: 2015 quality management systems 3)iso 14001: 2015 environmental management systems 4)ohsas 18001: 2007 occupational health and safety management systems 5)iec ts 62941: 2016 terrestrial photovoltaic (pv) modules – guidelines for increased confidence in pv module design qualification and type approval specifications cell poly weight 18.2kg±3% dimensions 1650mm×991mm×35mm cable cross section size 4mm² no.

of cells 60(6x10) junction box ip67, 3 diodes connector qc 4.10-35(1500v) mc4 compatible(1000v) packaging configuration 30 per pallet superior warranty 12-year product warranty 25-year linear power output warranty
