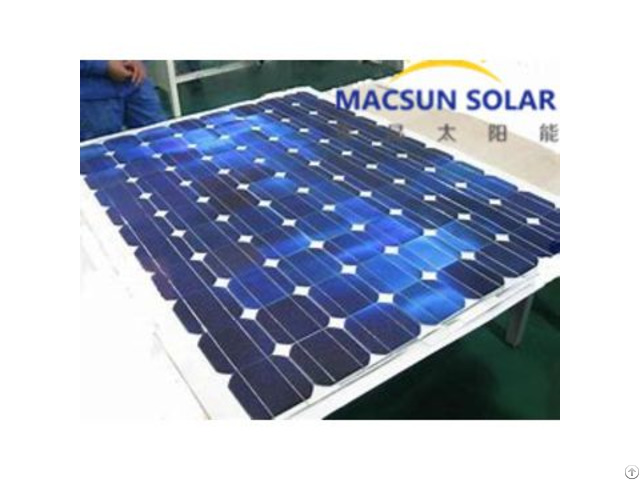

250w Mono Crystalline Solar Panels - China

250W Mono Crystalline Solar Panels MSP250M 0.26-0.29 Electrical Characteristics at STC TYPE MSP250M MSP255M MSP260M

Maximum Power Pmax(W) 250W 255W 260W Tolerance Value for Power % 0~+3% 0~+3% 0~+3% Maximum Power Voltage Vmpp(V) 30.40 30.50 30.50 Maximum Power Current Impp(A) 8.25 8.39 8.53 Open Circuit Voltage Voc(V) 37.50 37.50 37.50 Short Circuit Current Isc(A) 8.59 8.64 8.77 Module Efficiency η >15.36% >15.64% >15.96% Mechanical specifications

Cells Monocrystalline cell, 6 "(6x10)

Junction box IP67, combined with 3 by-pass diodes

Front Glass Thickness 4.0mm

Connecting Cable/Connector MC4 compatible connector/4mm² diameter, 900mm length

Frame Dimension 1640x992x40mm

Weight 19.5KG Packing Features

Frame Height 40mm

Qty/Pallet (PCS) 26

Qty/40HC container (PCS) 728 Characteristics & Performance

> Use of only certified materials at highest quality standards.

> The process of cell and module production is fully automated with 100% quality control and product traceability.

> Heavy load mechanical resistance: TÜV certified (5400Pa tested against snow and 2400Pa test against wind)

> Excellent performances even during low solar radiation

> Guaranteed positive tolerance 0 to +3% of power for each module Certifications for Incentives Quality, Environment, Health & Safety > ISO9001: 2008, ISO14001: 2004, OHSAS18001: 2007 > Full Member PV Cycle Association AISBL Product Certifications > Quality and Robustness: IEC61215: 2005 > Safety: IEC61730 -1/-2, MCS, CEC, UL > Resistance to salt corrosion (salt fog): IEC61701: 2000 > Resistance to ammonia fumes: Ammonia Resistance Test 25 Year Linear Power Guarantee Commercial > 12 years on material and manufacturing defects Performance > Power not less than 90% of power peak during the first 12 years > Power not less than 80% of power peak during the subsequent 13 years.
