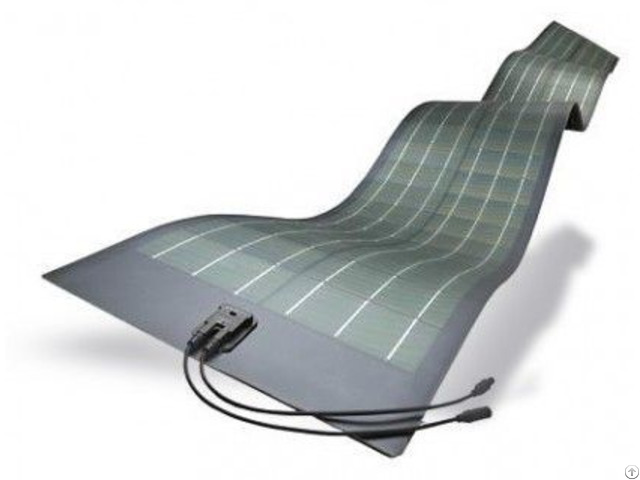

250w Flexible Cigs Thin Film Solar Panels Ms Flex Tsp250 - China
price: 4000.00 Dollar US$
250W flexible CIGS Thin Film solar panels MS-FLEX-TSP250 Quick Details Place of Origin: Shenzhen, China (Mainland) Brand Name: Macsun Solar Model Number: MS-FLEX-TSP250 Type: CIGS Thin Film Solar Module Max.
Power: 250W Size: 5745* 494*3.5mm
Working condition: Sunny, Cloudy, or even Rainy days Special Feature: Good performance in diffuse light or low-lux condition Mechanical Specifications Dimensions 5745 x 494 x <3 mm (226 x 19.4 x <0.12 in) Weight 7.2 kg without adhesive (2.5 kg/m2) 9.3 kg with adhesive (3.3 kg/m2) Junction Box -Top Mounted TE Connectivity SOLARLOKTM Micro Junction Box Cables 4 mm2 dual rated with SOLARLOKTM connectors Junction Box - Bottom Mounted MC-JM/FM (MC4 Connectors) Front Sheet Non-stick ETFE Solar Cells 108 CIGS cells (210 x 100 mm) Adhesive ADCO HelioBondTM PVA 600BT butyl mastic Hot Spot Protection Bypass diodes at each cell; 1 at junction box Materials Lead free and exempt from RoHS requirements Maximum Series Fuse Rating 10 Amp Color Options Black (B) or White (W) backsheet behind cells Packaging & Delivery Packaging Details: Bags & Cartons according to your requirements Delivery Detail: Shipped in 15 days after payment Flexible module Fits many roof types Durable, non-breakable High performance Performs in all light conditions Shade tolerant
Shade protected, continues to charge when part of the cells are in a shadow Covers entire roof area Lays flat, no tilt required Minimum module spacing required
Company Contact:
- Posted By: Macsun Solar Energy Technology Co., Limited
- Phone: 13530521249
- Address: Xinweirun Industrial Park, Furong Path, Songgang Town, Baoan District., Shenzhen, Guangdong, China, Shenzhen , Guangdong , China
- Email:
- Website: http://www.macsunsolar.com
Published date: May 16, 2019
- Business Description: MACSUN SOLAR owns production lines for solar cell, solar module, solar system and other solar application products.
Technological innovation is essential to our position as a leading global renewable energy provider.
Our R&D team focuses on the research and development of next generation PV technologies with a constant commitment to product quality and reliability as well as to cost structure optimization.
With diversified customers base in the global PV market, Macsun Solar delivers its solar modules and PV solutions worldwide.
