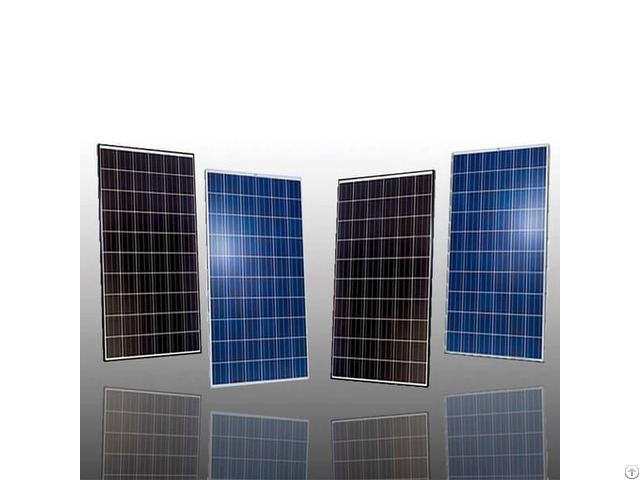

220w Poly Crystalline Solar Panel - China

MSP200P~MSP225P Excellent Quality

>Automatic production and testing processes;

>More than 18 IEC tests program in State-Level PV Laboratory of Macsun Solar;

>Third party liability and quality insurance;

>ISO9001, ISO14001 and OHSAS18001 management system.

Easy for installation

>Low weight, convenient format;

>Horizontal and Vertical installation applicable;

>Compatible with all standard rooftop and ground mounting systems.

Maximum Yield >Only Positive tolerance assorted;

>Photon test with TOP performance;

>Averagely, installed projects actual power yield is 5% higher than theoretical yield.

Model Pm(Wp) Tolerance Vm(V) Im(A) Voc(V) Isc(A) η

MSP200P 200W 0~+3% 25.90 7.73 32.70 8.10 >13.53%

MSP205P 205W 0~+3% 26.46 7.75 32.90 8.20 >13.86%

MSP210P 210W 0~+3% 27.00 7.78 32.90 8.25 >14.20%

MSP215P 215W 0~+3% 27.10 7.94 33.00 8.43 >14.54%

MSP220P 220W 0~+3% 27.10 8.12 33.00 8.50 >14.88%

MSP225P 225W 0~+3% 27.30 8.23 33.20 8.56 >15.22% Temperature Coefficients Temperature Coefficient of VOC(β)-0.31%/°C

Temperature Coefficient of ISC(α)+0.034%/°C

Temperature Coefficient of Pmax-0.39%/°C

Nominal Operating Cell Temperature(NOCT)45±2°C Permissible Operating Conditions

Maximum system voltage1000VDC

Operating temperature-40~+85°C

Snow loadMax 5400 Pa

Wind loadMax 120km/h

Mechanical Characteristics

Number of mono crystalline solar cell54pcsx6"

Aluminum frame, dimension 1490x992x40mm G lass thickness 3.2mm

Weight18kg

Junction boxIP65

ModuleIP65

Tolerance of Rating0~+3%

Number of bypass diodes3 Warranty

10 years with 100% product warranty

12years with 90% product warranty

25 years 80% rated power output

Company Contact:

• Posted By: Macsun Solar Energy Technology Co., Limited

• Phone: 13530521249

• Address: Xinweirun Industrial Park, Furong Path, Songgang Town, Baoan District., Shenzhen, Guangdong, China, Shenzhen , Guangdong , China

• Email:

• Website: http://www.macsunsolar.com

• Business Description: MACSUN SOLAR owns production lines for solar cell, solar module, solar system and other solar application products.

  Technological innovation is essential to our position as a leading global renewable energy provider.

  Our R&D team focuses on the research and development of next generation PV technologies with a constant commitment to product quality and reliability as well as to cost structure optimization.

  With diversified customers base in the global PV market, Macsun Solar delivers its solar modules and PV solutions worldwide.
