200w 24v Solar Pump System With Mounting Kits For Water Fountain - China
price: contact company for price

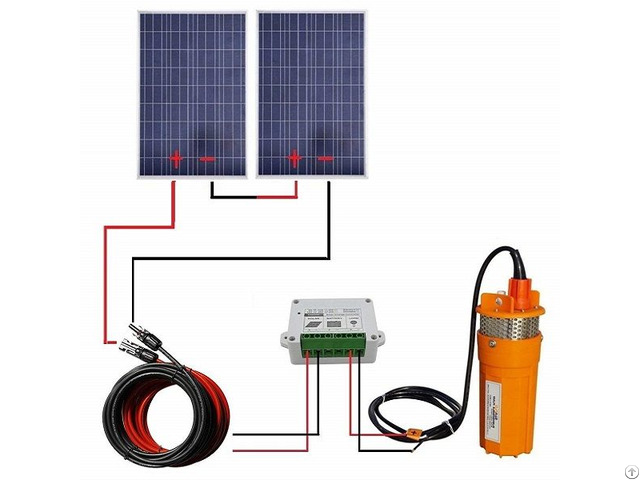

The Eco-Sources 200W 24V Solar Water Pump System includes 2pcs 100 watts polycrystalline solar panels, 1pc 24 Volts submersible well pump, 1pc 15A solar charge controller, 1pc Y MC4 connector, 2pcs 16ft solar cable with MC4 connector (1pc 16ft red cable & 1pc 16ft black cable), which can be used in livestock watering, irrigation, ponds, remote homes and cabins.
Features
1 - This solar-powered pump kit is made up of highly efficient solar panel and submersible water pump.
Start-up fast, efficient and strong stability.
2 - As the power of the solar panel is depended on the sunlight, the pump is also affected by weather, seasons, places, etc.
3 - Don’t make the pump work without water for a long time, or its lifespan will be shortened.
Clean the pump regularly.
4 - For 4” wells or larger.
Suitable for the pond, garden fountains, water circulation, etc.
5 - One year warranty period.
If you have any questions, please do not hesitate to contact us by email and we will do our best to solve the problems for you.
Specification
100W Poly Solar Panel Related power: 100W
Maximum/Peak Voltage(Vmp): 21.6V
Open Circuit Voltage(Voc): 18V
Maximum/Peak Current(Imp): 6.11A
Short circuit current (Isc): 5.55A
Output Tolerance: ±3%
Temperate coefficient of Isc: (0.10+/- 0.01) %/℃
Temperate coefficient of Voc: – (0.38 +/-0.01) %/℃
Temperate coefficient of power Voc: -0.47%/℃
Temperature range: -40℃~+80℃
Frame: Heavy duty aluminum
Guarantee of power: 90% within 10 years, 80% within 25 years
Defective Warranty: 5 year warranty against material and workmanship
Kind of glass and its thickness: Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage: 12V
Size: 39.3*26.2*1.38in (996*665*35mm) 24V Submersible Water Pump Model: SFBP2-G96-08
Volt: 24V DC
Amps: 4 Max
Flow Rate(lph/gph): 360/96
Maximum Lift: 230 Feet (70 Meters)
Maximum Submersion: 100 Feet (30 Meters)
Package Size: 355*130*110mm
Net Weight: 2.9kg
Gross Weight: 3kg 15A PWM Charge Controller Nominal output: 12V/24V
Max charge current: 15A
Max load current: 15A
Max solar panel: 270watt/540watt
Overcharger protection: 14.5V/29V
Float charger: 13.8V/27.6V
Self-consumption: 2mA/4mA
Size(inch): 4.35*2.33*1.3
Waterproof: IP22
Operating temperature: -20℃~+60℃
Net weight: 110g (0.24lbs)
