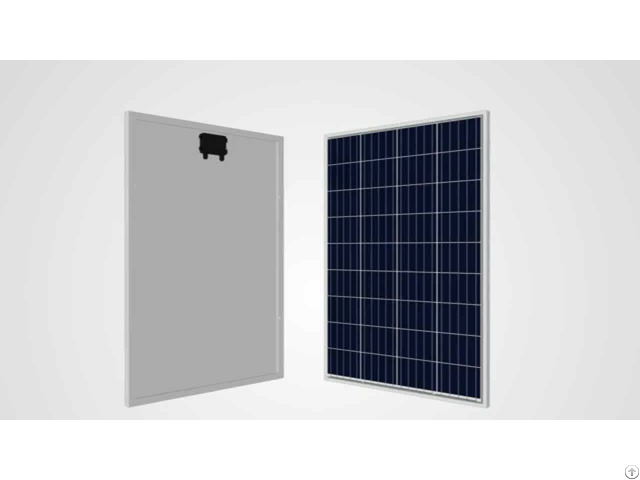

190w 220w Oem Customizable Poly Crystalline Solar Panel - China

Characteristics & Performance

> Use of only certified materials at highest quality standards.

> The process of cell and module production is fully automated with 100% quality control and product traceability.

> Heavy load mechanical resistance: TÜV certified (5400Pa tested against snow and 2400Pa test against wind)

> Excellent performances even during low solar radiation

> Guaranteed positive tolerance 0 to +3% of power for each module Quality, Environment, Health & Safety

> ISO9001: 2008, ISO14001: 2004, OHSAS18001: 2007

> Full Member PV Cycle Association AISBL

> Quality and Robustness: IEC61215: 2005

> Safety: IEC61730 -1/-2, MCS, CEC, UL

> Resistance to salt corrosion (salt fog): IEC61701: 2000

> Resistance to ammonia fumes: Ammonia Resistance Test 25 Year Linear Power Guarantee

Commercial

> 12 years on material and manufacturing defects

Performance

> Power not less than 90% of power peak during the first 12 years

> Power not less than 80% of power peak during the subsequent 13 years.

Module Type PSP190W PSP195W PSP200W PSP205W PSP210W PSP215W PSP220W

Cell Type 156.75x156.75mm

Number of Cells 6*8pcs

Dimensions 1320*984*40mm

Peak Power (Pmax) 190W 195W 200W 205W 210W 215W 220W

Module Efficiency (%) 14.63 15.01 15.40 15.78 16.17 16.55 16.94

Power Tolerance ±3%

Open Circuit Voltage(Voc) 30.02 30.12 30.20 30.31 30.51 30.72 30.90

Short Circuit Current(Isc) 8.31 8.54 8.69 8.82 8.97 9.11 9.25

Max Power Voltage(Vmp) 23.28 23.59 23.90 24.21 24.48 24.71 24.89

Max Power Current(Imp) 8.16 8.27 8.37 8.47 8.58 8.70 8.84

Operating Temperature -40°C~85 °C

Nominal Operating Cell Temp.

4.7±2 °C

Temp.

coefficient Isc(TK Isc) 0.06%/ °C

Temp.

coefficient Voc(TK Voc) -0.34%/ °C
