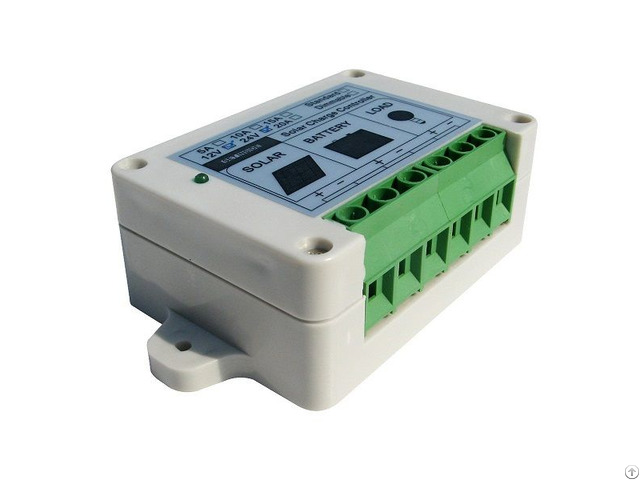

15a Pwm Solar Panel Charge Controller For 12v 24v Battery - China

Pulse Width Modulation (PWM) is the most effective means to achieve constant voltage battery charging by adjusting the duty ratio of the switches ( MOSFET ).

In PWM charge controller, the current from the solar panel tapers according to the battery’s condition and recharging needs.

When a battery voltage reaches the regulation set point, the PWM algorithm slowly reduces the charging current to avoid heating and gassing of the battery, yet the charging continues to return the maximum amount of energy to the battery in the shortest time.

Features

1 - High quality, reliable and economically priced charge controller 2 - PWM charge controller is a good low-cost solution for small systems 3 - Electronic protection: overcharge, over discharge, overload and short circuit protection 4 - 12/24V system automatic detectable.

5 - Wrong battery pole connection protection; Lightning protection.

6 - 3-stage charging algorithm, impulsive charge, bulk charge, floating charge 7 - Built-in light sensor, suitable for a periodic discharge system such as solar street lights, solar pumps etc.

8 - 1 Year Warranty Specification

Nominal output: 12V/24V

Max charge current: 15A

Max load current: 15A

Max solar panel: 270Watt/540Watt

Over-discharge protection: 10.8V/21.6V

Reset: 12V/24V (Adjustable)

Overcharger protection: 14.5V/29V

Float charge: 13.8V/27.6V

Self-consumption: 2mA/4mA

Size: 110*59*33mm

Waterproof: IP22

Operating temperature: -20℃~+60℃ Application

Suitable for a periodic discharge system such as solar street lights, solar pumps etc.
