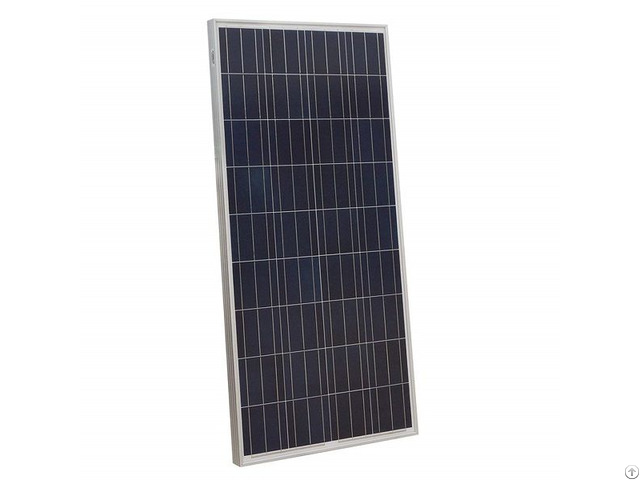

150w Polycrystalline Solar Panel Module For 12v Battery Charging - China

The Eco-Sources standard 150 Watt polycrystalline PV solar panels are highly efficient with a robust design.

A tempered glass coating and a sturdy aluminum frame ensure that our panels will withstand harsh road conditions and extreme weather conditions.

Each panel is tested at the time of manufacture to conform to CE standards, so you can be sure that the panel output is exactly as described in its specification.

Features

1 - High conversion efficiency 150-watt polycrystalline solar panel for RVs, cabins, homes, boats, back-up and remote power use.

Perfect for 12-volt battery charging or multiple panels can be wired in series for 24/48-volt battery charging or for grid-tied applications

2 - Easy to install with pre-drilled holes on the back of panels for fast mounting and securing.

Each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors.

3 - By-pass diodes are pre-installed in the waterproof IP-65 rated junction box to minimize power drop caused by shade and ensure excellent performance in low-light environments.

4 - Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).

5 - One year warranty, please feel free to contact us if there are any questions.

Specification

Rated power 150W

Voc 22.41V

Vop 17.9V

Short circuit current (Isc) 9.87A

Working current (Iop) 8.89A

Output Tolerance ±3%

Temperate coefficient of Isc (010+/- 0.01 )%/ ℃

Temperate coefficient of Voc – (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃to +80℃

Frame Heavy duty aluminum

SLA Battery Voltage 12V

Dimensions (L x W x H)mm SIZE 1 : 665*1450*35mm (26.3*57.3*1.38 in)

Dimensions (L x W x H)mm SIZE 2 : 730* 1515*65 mm( 28.7*59.6*2.55in)

Weight 28.7lbs(13KG)

Warranty 25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty
