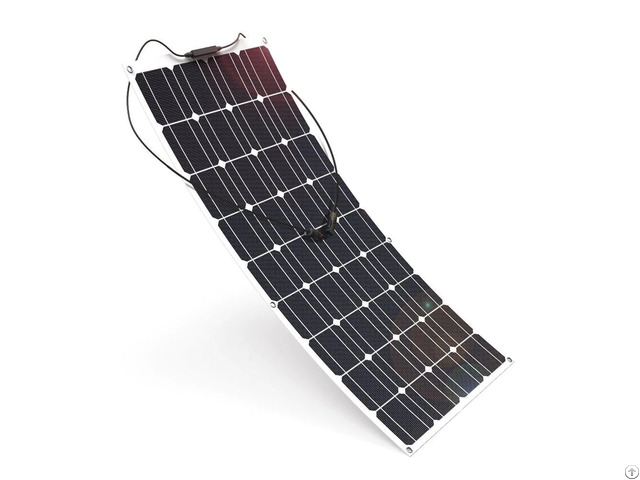

150w Etfe Mono Flexible Solar Panel - China

The Features of Flexible Solar Panels: 1 - The PERC monocrystalline cell, up to 22% efficiency, you will get greater power efficiency even though the ETFE solar panel is no larger than a traditional model

2 - Easy Installation: Holes on solar panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations; Can be affixed by adhesive, grommets or Velcro (with which you can easily attach or detach the panels); Can be installed without costly structural roof reinforcements

3 - Widely Compatibility: Boats/Sailboats, Yachts, Marine applications, RVs, Expedition Vehicles, Commercial Trucks, Trailers, Tent, Caravans, Off-Grid Applications, Remote Communication sites and other irregular surface

4 - Flexible: The ETFE solar panel can be curved to a maximum 30 degree arc, Ideal for storage in tight spaces or crowded areas that are typically off limits for traditional glass and aluminum models

5 - Reliable: The junction box is sealed and waterproof

6 - Productivity : Bypass diodes minimizes performance drop due to partial shade and prevent battery discharge at night

7 - Durable: ETFE Design longer life time of 15-20 years and is Scratches-protected and weather resistant Specifications:

* Maximum Power-Pmax(Wp): 150W

* Voltage at Maximum Power-Vmp(V): 18.0V

* Current at Maximum Power-Imp(A): 8.34A * Open Circuit Voltage-Voc(V): 21.60V

* Short Circuit Current-Isc(A): 9.05A

*Max imum system voltage(V): 600V

*Dimensio n: 1460*670*3mm

*Weight: 2.6kg

Company Contact:

• Posted By: shenzhen top solar energy co.,ltd

• Phone: +8675585224431

• Address: longgang district, shenzhen , China , China

• Email:

• Website: https://www.topsolar-energy.com

• Business Description: Shenzhen Top Solar Energy Co.,Ltd.

  is located in Shenzhen City,Guangdong Province,China.

  we specialize in producing solar panel, flexible solar panel, folding solar panel, small solar panel, portable solar system etc.

  we also supply the solution of solar power, such as off-grid and on-grid solar system.

  We have our own R&D teams,production lines and sales teams.

  Our company employs more than 200 skilled workers.

  our production capacity is 600MW in solar modules。

  Our services satisfy clients in US,Europe,Japan,Middle east and Southeast Asia .

  we utilize advanced technology and good management to produce high-quality products with competitive cost structures.

  We take innovation,cooperation,te amwork and speed as spirit, and keeps innovation.

  Through the continuous technological innovation and expanding of the production scale, our company is continuing to lower manufacturing costs to make the inexhaustible and green solar energy to step in thousands of households, and create a better tomorrow for human development!
