12v 850w Completed Solar Wind Hybrid System - China

The Eco-Sources 850W completed solar & wind power hybrid system composed of 1pc 400W wind turbine with the hybrid controller, 3pcs 150W poly solar panels, 1pc 12V-110V 1000W Off Grid pure sine wave inverter, 2 pairs Y branch MC4 connectors, 1pc 24cm cable with MC4 connectors (Please cut it into two pieces for connection).

Features

1 - This system can be placed on a houseboat with the turbine generator.

You can use wind and solar simultaneously to charge the battery bank.

2 - The controller is 12V/24V autodetect, please connect the battery to the controller firstly, and then connect the solar panel and wind turbine with the controller.

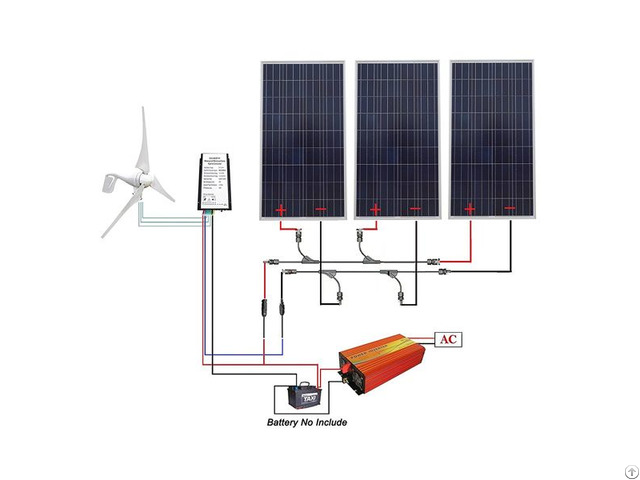

3 - Controller connection: Red wire is positive for all connections; Black wire connect with battery negative; Green wires connect with the wind turbine (in no particular order); Blue wire connects with the solar negative; Yellow wire connect with 12V/24V DC devices.

4 - The cable connector included is for connecting the solar panels with the controller, you need to get other cables (14awg suggested) to connect the turbine with the controller.

5 - High-performance nylon fiber blades by precision molding injection.

It’s designed for both land and marine.

Specification

150W Poly Solar Panel Rated power: 150W

Open circut voltage (Voc): 22.4V

Max.

Voltage (Vmp): 18V

Short circuit current (Isc): 9.20A

Max.

current (Imp): 8.33A

Cell Efficiency(nc): 17%

Cell Size: 6*6inches/156*156mm

Number.

type and arrangement of cells: 36pcs Poly-Crystalline Silicon(4*9)

Module Efficiency(nm): 15.1%

Max-System Voltage(VDC): 1000v

Output Power Tolerance: ±3%

Temperate coefficient of Isc: +0.05%/ ℃

Temperate coefficient of power Voc: -0.38%/℃

Operating Temperature range: -40℃~+90℃

SLA Battery Voltage: 12V

Size: 59.1″*26.4″*1 .

6″ (1500*670*40mm)

Weight: 26.5lbs/12kg


Cable Length: 35.4inches/900mm 400W Wind Turbine Nominal Voltage: 12-24V

Cut-in Wind Speed: 2.5m/s

Rated wind speed: 10.5m/s

Maximum wind speed: 35m/s

Rated Rotate Speed: 800r/min

Battery capacity: 200AH-400AH

Fan blade quantity: 3pcs

Wind leaf material: Carbon fibre composite

Rotor diameter: 1.2M

Tower diameter: Suggest more than 48mm

Altitude of towe: 4.5M-10M

control system: Automatic fan dedicated controller

Generator style: Permanent-magento-p hase A.

C

Net weight: 17.64lbs (8kg)

Packing: 27.1″*14.4″*8.3″ (687*365*210mm) 1000W Pure Sine Wave Inverter Output Volt: 110VAC

Continuous Power: 1000W

Surge Power: 2000W

Frequency: 60Hz

Efficiency: >90%

USB Output: 5V

Input Range: 10-15VDC

Working Input: 12VDC

Fuse: 35A

Low Battery Alarm: 10.5+0.3V

Low Battery Shut Down: 10+0.5V

Over Voltage Shut Down: 15.5+0.5V

Over Load Shut Down: 120W over 10 second

Over heating shut down: >75℃

Over Thermal Protection: Shut down the output

Working Temperature: -10℃~+50℃
