12v 20 Watts Epoxy Solar Panel Kits With 10a Pwm Charge Controller - China
price: contact company for price

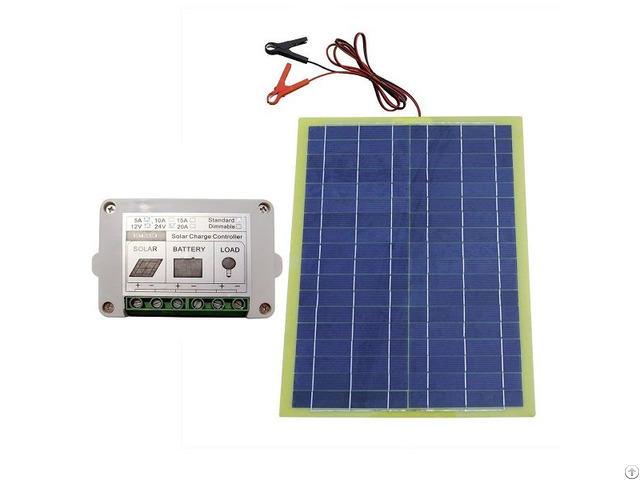

The Eco-sources 20 watts epoxy solar panel kits with battery clips, can charge the 12V battery directly, it will output max 90% power on a sunny day.
Waterproof and light design, let the solar panel easy to take outdoor, you can take it to camp, hiking, and travel.
It is also a good item to teach kids how magic the sun is, and how can we save the sources of the earth.
Features
20W 18V epoxy solar panel with 10A solar charger controller, can charge the 12V battery directly, it will output max 90% power on a sunny day.
Waterproof and light design, let the solar panel easy to take outdoor, you can take it to camp, hiking, and travel.
Lightweight easy carry free sunlight charge.
Can be used for the trickle charger.
DIY your camper backpack.
Specification
20 Watts Epoxy Solar Panel
Related power: 20W
Maximum/Peak Voltage(Vmp): 17.9V
Open Circuit Voltage(Voc): 22.4V
Maximum/Peak Current(Imp): 1.14A
Short circuit current (Isc): 1.23A
Output Tolerance: ±3%
Temperature range: -40℃to +80℃
SLA Battery Voltage: 12V
Dimensions (L x W x H)mm: 450*350*2mm 10A PWM Solar Charge Controller
Model: 10A
Nominal output: 12V/24V
Max charge current: 10A
Max Load current: 10A
Max solar panel: 180W/360W
Over discharge protection: 10.8V/21.6V
Reset: 12V/24V
Over charge protection: 14.5V/29V
Float charge: 13.8V/27.6V
self consumption: 2mA/4mA
Waterproof Class: IP22
Operating temperature: -20 to +60℃
