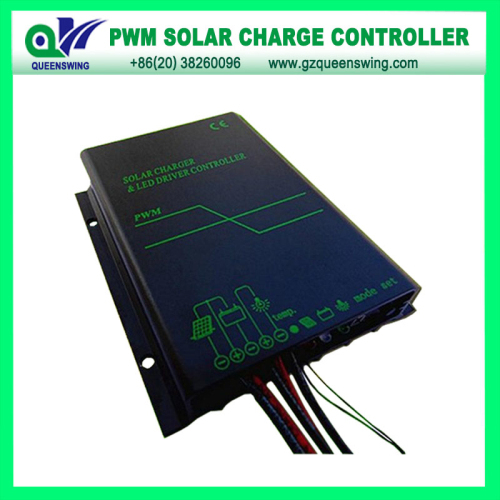

12 24v Waterproof Auto 10a Pwm Solar Charge Controller - China

Model no.

: QWP- 1410WP1

1 - System voltage: 12V/ 24V Auto

2 - System current: 10A

3 - No- load loss: < 5mA

4 - Solar input voltage: < 55V

5 - Overload, short circuit protection:

1.25 times rated current 3 minutes to be automatic recovery;

1.5 times rated current 5 minutes to be automatic recovery;

≥ 2 times rated current frequency, short circuit protection,

could

6 - Working temperature: - 35 ºC to + 65 ºC;

7 - Protection grade： IP68

8 - Weight: 0.15Kg

9 - Size: 65 x 67 x 18 ( mm)

Main features:

1) .

IP68 waterproof level, aluminum shell design, can

effectively prevent all kinds of corrosion.

2) .

12 V / 24 V voltages to be an automatic identification

system.

3) .

LED digital display and waterproof the key operator, use

simple and quick.

4) .

Improved tasting charging algorithm, every week for a

balanced battery charging, effective.

Prevent battery is not

balanced and curing phenomenon, improve battery service

life.

5) .

Three time works load mode, convenient use in all kinds

of street lamp and monitoring equipment.

6) .

External temperature sensor, and has high precision

temperature compensation.

7) .

All kinds of state instructions.

8) .

With the charger, discharge, overload protection and

electronic short circuit

Protection and Meter protector against fraud protection.

9) .

TVS lightning protection.

Company Contact:

• Posted By: Guangzhou Queenswing Solar Energy Co., Limited

• Phone: 862038260096

• Address: Rm. 2206, Biulding D, Jinyan Garden, No616 Yueken , guangzhou , China

• Email:

• Website: http://www.gzqueenswing.com

• Business Description: Guangzhou QueensWing is a supplier of power inverter, solar charge

  controller, solar panel and apparel to dealers

  and distributors worldwide serving the healthcare, electronic system, safety, industrial and military affairs.

  QueensWing offers solar products including：

  Power inverter (Car power inverter, UPS+charger inverter, pure sine wave inverter)

  Solar charge controller ( PWM, MPPT)

  Solar panel (Poly, Mono)

  Battery (VRLA type, GEL type)
