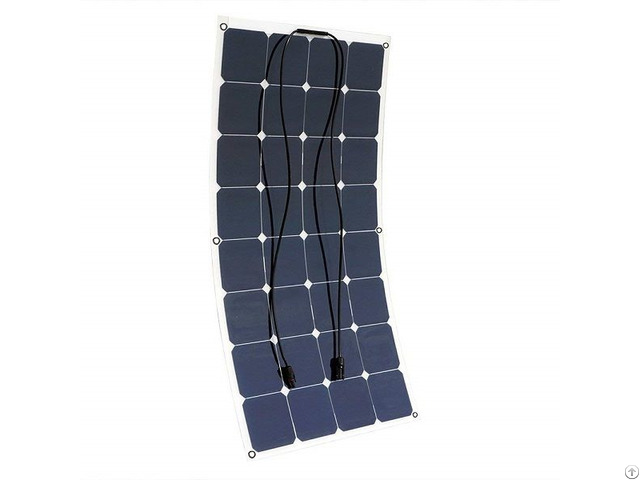

100w 12v Bendable Lightweight Thin Monocrystalline Flexible Solar Panel - China

The Eco-Sources 100 Watt 12 Volt monocrystalline lightweight flexible solar panel uses advanced monocrystalline cells that have been laminated into a thin plastic sheet.

The result is a solar panel that is far more durable and efficient than traditional glass and aluminum models.

Features

This powerful 100w solar panel size is 41.7*20.86*1.12” with lightweight 3.97lbs(1.8kg), making it easier to transport, hang and remove.

This flexible panel contains 32 efficient monocrystalline solar cells.

It can be curved to a maximum 30-degree arc, perfect for outdoor working, traveling and camping.

Sealed waterproof junction box within diode, makes charging battery safer and a pair of 39.3 inches cables with MC4 connectors make install easily.

Easy install with 6 pre-drilled metal reinforced mounting holes, this solar panel can be affixed by adhesive, grommets, zip ties, It can be installed without costly structural roof reinforcements.

Suitable for crowded areas or irregular surface that are typically off limits for traditional glass and aluminum models.

Applicable for RV, boat, cabin, tent, yachts, car, trucks, trailers, etc.

Specification

Electrical Characteristics Maximum Power at STC (Pmax): 100 W

Optimum Operating Voltage (Vmp): 17.60 V

Optimum Operating Current (Imp): 5.83A

Open Circuit Voltage (Voc): 21.10V

Short circuit current (Isc): 6.11A

Cell Efficiency: 22.0%

Maximum System Voltage: 1000 V DC (IEC) / 600 V DC (UL)

Maximum Series Fuse Rating: 20A

Power Tolerance: ±5 %

Standard Test Conditions(STC): irradiance 1000 W/m2, module temperature 25 °C, AM=1.5 Mechanical Characteristics Quantity of cell: 32pcs(4×8)

Size: 41.7″x 20.86″x1.12″(1060 × 530× 2.8mm)

Weight: 3.97lbs(1.8 kgs) 4

Length of Cables: 4.0 mm2, symmetrical lengths(-)1000mm and (+)1000mm

Output Cables TUV (2Pfg1169: 2007), UL 4703, UL 44

Front Glass: PET

Junction Box: IP67 rated black

Connectors SOLAR MC4: integrated twist locking connectors Temperature Characteristics

Operating Module Temperature: -20 °C to +65 °C

Nominal Operating Cell Temperature (NOCT): 25±2°C

Temperature Coefficient of Pmax: -0.44 %/°C

Temperature Coefficient of Voc: -0.33 %/°C

Temperature Coefficient of Isc: 0.055 %/°C Fixing Methods

Permanet: This solar panel can be affixed by adhesive, grommets, zip ties.

Installed without costly structural roof reinforcements.

Removable: Fitted wtih a velcro type fixing system.
