Steel Case Zr 80we Co2 Laser Power Supply - China

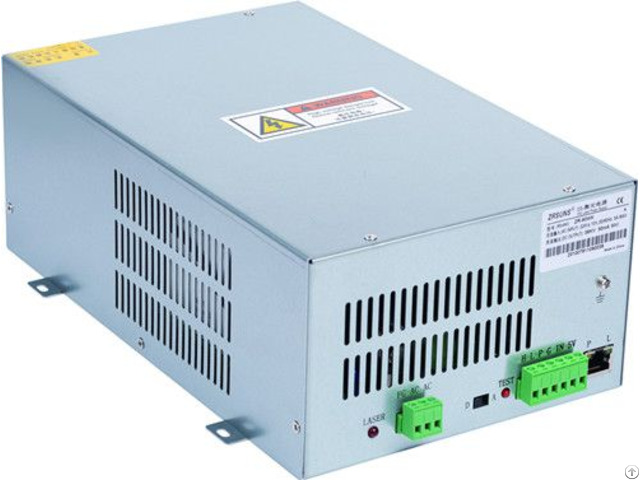

ZR-80W LASER POWER SOURCES

Feature:

1 - The 80W laser power supplies have good compatibility : The air cooling laser power supplies can work with most brand 1250mm, 1400mm or 1450mm 80W or 90W glass laser tube, besides this feature, the network port laser power supplies also have strong adaptability and fast response, engraving or cutting benefits good effect.

2 - The laser power control is simple, the network port laser power supplies can use 0-5V analog signal to control the laser power.

Also the 80W laser power supplies can also use the PWM (pulse width modulation) signal for laser power control.

3 - The air cooling laser power supplies have good protection function: The network port laser power supplies have open circuit protection to make the 80W laser power supplies to short-term work in the open state, so as to make it avoid the laser tube broken.

4 - This 80W laser power supplies has simple control which selects high and low level for laser power control.

The use of TTL-level control can realize start and stop.

At the same time the air cooling laser power supplies add a protection switch, testing is made by external water and ventilation.

5 - This 80W laser power supplies have stable laser output performance: Each air cooling power supplies have been much more testing procedures and under full load high temperature (52~55 degrees celsius) 24 hours of aging, which ensure the stability of each network port laser power supplies.

6 - The ZR-80W laser power supplies uses ordinary H/L/P/G/IN/5V as laser control signal.

And it uses aluminum top cover and galvanized plate bottom case Specification

lnput Input voltage AC220V±10% (AC110V specified while order) AC frequency 47~440HZ Maximum input power 750W Maximum input current 3.4A

Output Maximum output voltage 32KV Maximum output current 33mA

(depending on the laser tubes of different manufacturers)

Efficiency More than 90% (Full load)

Response speed Not more than 1ms

Control lnterace TTL multilevel switching control, effective level can be high and low selection (see control wining diagram)

Insulation lnput-output AC 1500V 1 minutes not more than 10mA lnput-shell AC 1500V 1 minutes not more than10mA Output-shell Connection

Open Circuit Protection Can be short circuit (requires a good grounding shell, while avoiding the positive electrode and the shell between the arc)

Environmental Requested Working temperature -10℃~50℃ Storage of temperature -20℃~75℃ Relative Humidity Maximum 85%RH (non-condensing) Altitude 100, 000 feet of work

200, 000 feet of storage, dose not work

Cooling methods Forced air cooling (fan cooling)

Dimensions (LxWxH) 283mmx178mmx106mm
