Vacuum Melt Spinning Furnace With Precision Temperature - China

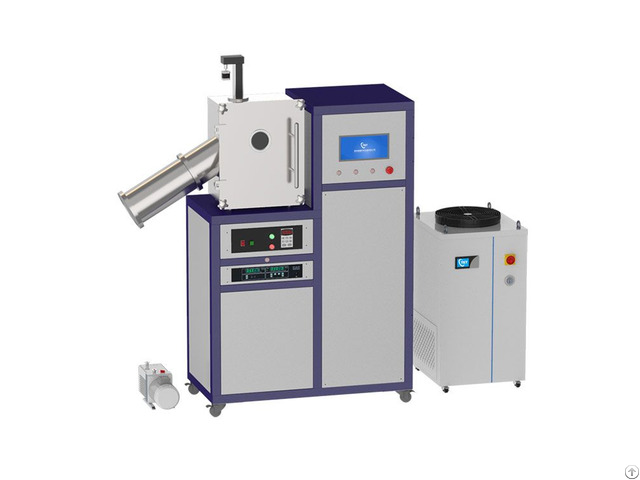

CYKY-BTF-500 is a lab-scale vacuum melt spinning system for preparing amorphous metallic ribbons.

In this technique, metal ingots (<50g) are melted via induction heating method and then propelled by over-pressurizing the crucible.

Feature:

The complete system consists of the stainless steel vacuum chamber, vacuum system, induction heating system, rack system and discharging tubular collector.

Copper roller linear speed: 5 ~ 60m / S

Melting metallic samples: 5g ~ 50g/Per batch

Vacuum casting device (not included in standard configuration)

Vacuum chamber & vacuum pump:

Vacuum chamber size: Φ 500mm x 400mm L

Hinged cavity door with quartz observation window

Molecular pump system is installed in the equipment

Vacuum: 5 X10E-5 Torr (within 20 minutes)

Limiting vacuum 10e-7 Torr (to be baked)

Induction heater & temp Controller

Heating power: 15kw; frequency range: 30 ~ 80kHz

Melting sample quantity: 10 - 50g (depending on the material)

Accurate temperature control system, B-type thermocouple, 30 temperature rise and fall procedures can be set

Temperature control accuracy: + / - 2 ℃
