Two Zone Rotary Plasma Enhanced Hpcvd Tube Furnace For Heat Treatment Of Inorganic Composite Powder - China
price: 39100.00 Dollar US$

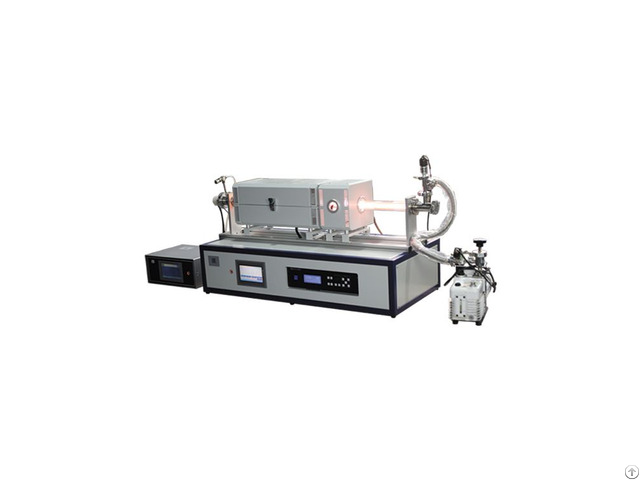

This product is a 1200℃ plasma enhanced hybrid physicochemical vapor deposition (HPCVD) double temperature rotary tube furnace system.
The equipment includes a double-temperature tube furnace, a tungsten filament evaporation source, a plasma generator and a mass flowmeter system.
Its working principle is to evaporate the reactant at the gas inlet end through the evaporation source and load it into the heating zone of the tube furnace through the airflow to carry out the CVD reaction.
At the same time, the reaction is promoted by plasma enhancement.
It is suitable for the heat treatment of inorganic composite powder and the uniform coating of powder surface (e.g. prepare Li-Ion battery cathode powders with conductive coatings on sample surface).
Company Contact:
- Posted By: Zhengzhou CY Scientific Instrument Co., Ltd.
- Phone: +86 37155199322
- Address: No. 820, 8th Floor, 1st Unit, 9th Block, Cuizhu Street, High-Tech Zone, zhengzhou , HeNan , China
- Email:
- Website: https://www.cysi.wang
Published date: December 30, 2020
- Business Description: Our mainlyproducts include high temperature furnace,include 1200/1400/1700 degree muffle furnace,1200/1400/1700 degree tube furnace, dental furnace, vacuum furnace,gold melting furnace, SiC heating element, MoSi2 heating element, alumina tubes and crucibles, and etc.
We have our own manufacturing base factory as while as many sub-contracting factories, which enable us a reliable manufacturing ability and quality control system.
We are capable of supplying both the equipment and technologies according to customers' different requirements and realities, and we have lots of successful projects in many different countries and regions, like East Europe, South Asia, South America, Australia and New Zealand, and Africa.
"Profession, Quick Response, Hard Work, and Sincerity" is the strength of our team, earning us a sound reputation among our clients.
We are open and willing to work with clients from different countries and regions.
