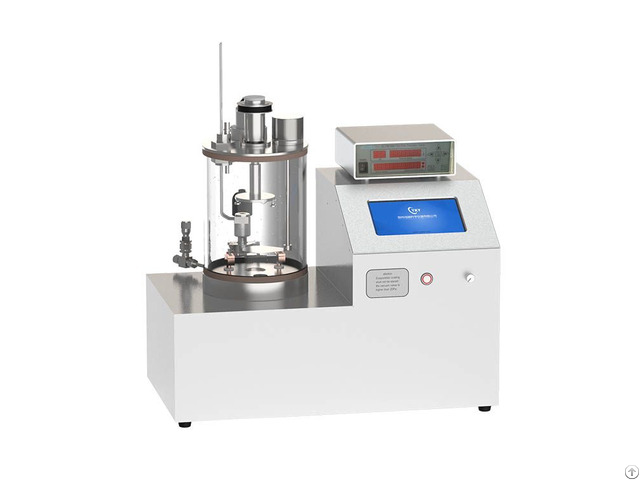

Small Temperature Controlled Evaporation Coating Machine - China

This small program temperature-controlled evaporation coating machine can set the program and precisely control the temperature to change within the range of 200℃-1500℃.

During the evaporation coating of the sample, the sample stage can be rotated to obtain a more uniform film.

This model of small program temperature control evaporation coating machine has a wide range of applications, can prepare a variety of metal film and organic film, so it is widely used in the preparation of electrodes and the preparation of organic light-emitting LEDs.

The compact size of the instrument saves laboratory space; it is easy to operate and adaptable to different materials, so it is widely used in laboratories of universities and research institutes.

Features:

1 - This equipment uses a quartz chamber for easy cleaning and sample placement;

2 - The sample stage can be rotated, and the coating effect can be more uniform;

3 - Using tungsten wire as the heat source, the maximum temperature can reach 1700℃, and it is equipped with a special alumina boat loading sample (only used below 1600℃, if the evaporation temperature is greater than 1600℃, the sample should be placed directly in the tungsten wire basket);

4 - The device can be switched to the manual adjustment state.

The thermocouple is not installed inside, and the output current is directly adjusted by the manual.

The temperature of the heat source can reach 2000℃, which can meet the experimental requirements for carbon plating of the sample.

5 - The inert gas can be introduced into the vacuum chamber to clean the chamber, or the reaction gas can be introduced to carry out the reaction evaporation coating.

6 - The air inlet is equipped with a needle valve for regulating the intake air flow.

Please contact us by email for details.
