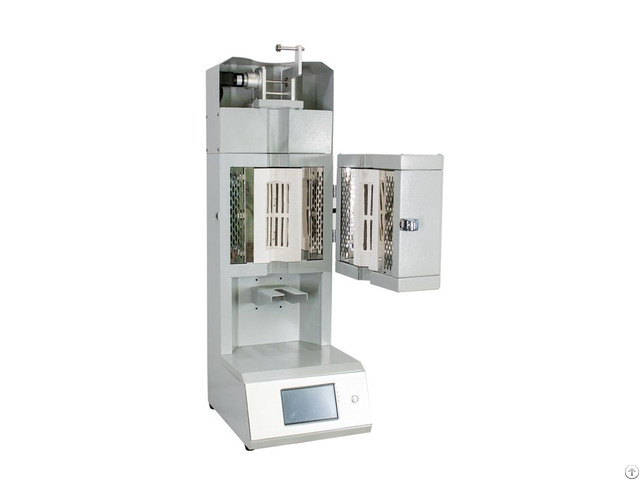

Laboratory Bridgman Crystal Growth Furnace Up To 1100 - China

Bridgman crystal growth furnace is a small 1100℃ Bridgman crystal growth furnace with a 2-inch quartz tube and precision hanged wire travel mechanism.

It is used to grow small size crystals in the atmosphere-protected environment or sealed quartz crucible environment.

The growth furnace adopts tube structure and has three zones: a heating zone, a gradient zone and a cooling zone, each of which uses PID independent temperature control.

The suspension wire is made of platinum wire, which can withstand temperatures up to 1600℃.

The lifting motor uses a stepper motor with the speed range of 0.03mm / h to 90mm / h.

It can be adjusted to meet the needs of various crystal growth.

Bridgman crystal growth furnace application range:

The field of use is for the growth of small size crystals in the atmosphere-protected environment or sealed quartz crucible environment.

Please contact us by email for details.
