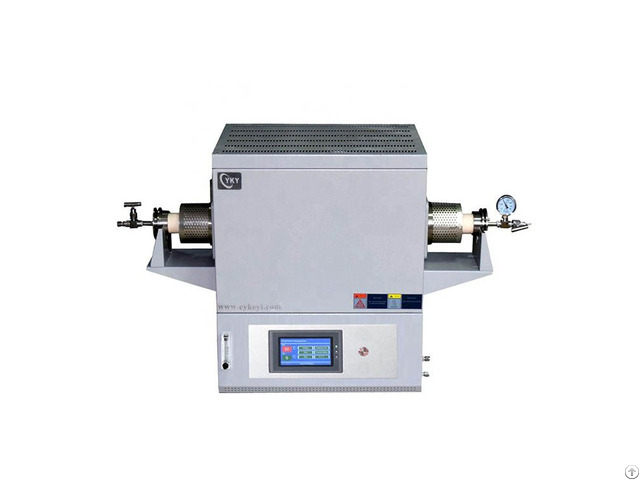

High Temperature 1500 Tube Furnace For Laboratory Research - China

1500℃ tube furnace uses high-quality carbon silicon rod as heating element, the maximum heating temperature is 1500℃, and the diameter of the quartz furnace tube is 50 mm.

it is made of high purity alumina, and the high temperature resistance is superior.

If the customer needs, can contact the technician to customize the larger diameter furnace tube.

The7 default heating zone is one zone.

Multi-heating zone can also be customized according to customer needs.

The temperature zone is controlled by the precision temperature control meter for PID temperature control.

The 30-segment temperature rise and fall program can be edited, and the overheating and open circuit of thermocouple protection functions are also available.

The furnace adopts closed design, the furnace tube is inserted from the side, and the use is safe and stable, which can effectively prevent the operator from being burned.

The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube.

At the same time, the tube furnace is operated by HD true color touch screen, which is easy to use.

Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.

1500℃ tube furnace application range:

Tube furnaces are mainly used in metallurgy, glass, heat treatment, lithium battery positive and negative materials, new energy, abrasives and other industries, and can also be used for heat treatment in atmospheric environment.

It can also be used to form a CVD system for related coating test production.

Please contact us by email for details.
