Four Sources High Vacuum Evaporation Coating Equipment For Laboratory - China

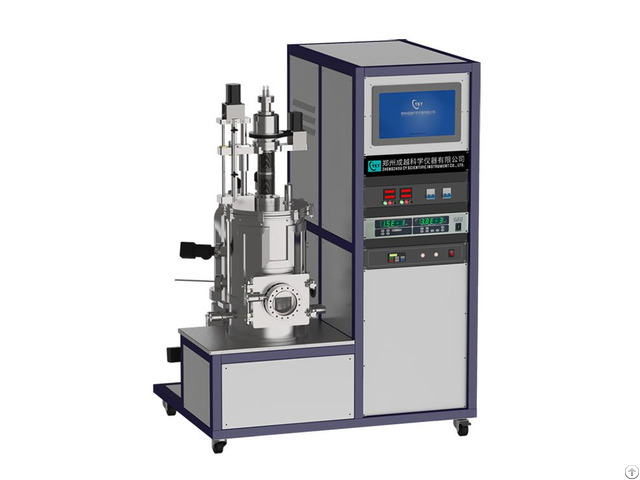

Model: CY-EVP325S-4S-T This equipment is a four-source high-vacuum evaporation coater.

The equipment adopts a front-opening door vacuum chamber design.

In addition, the chamber is increased to 500mm.

The distance between the sample stage and the evaporation source has a larger adjustment range, which can adapt to various evaporation needs.

It avoids the sample being damaged by the high temperature of the evaporation source.

The chamber adopts an top sample stage, the sample stage can be rotated, heated and lifted, and all operations can be integrated and controlled through the touch screen.

The equipment vacuum system is a two-stage vacuum system composed of a two-stage rotary vane pump and a turbo molecular pump, which can provide a clean and oil-free high vacuum environment.

The equipment is equipped with a pneumatic valve system.

Through the automatic control of the operating system, the user can perform operations such as one-button vacuum pumping, non-stop take out and place sample, and complete shutdown from the touch screen.

The equipment is equipped with four sets of tungsten boat evaporation sources and water-cooled copper electrode.

Each evaporation source supports a large current of 100A and a heating temperature of 1800℃.

It can realize multi-layer coating or mixed coating of multiple materials.
