Dual Zones Sliding Rotary Tube Furnace For Powder Cvd Coating - China

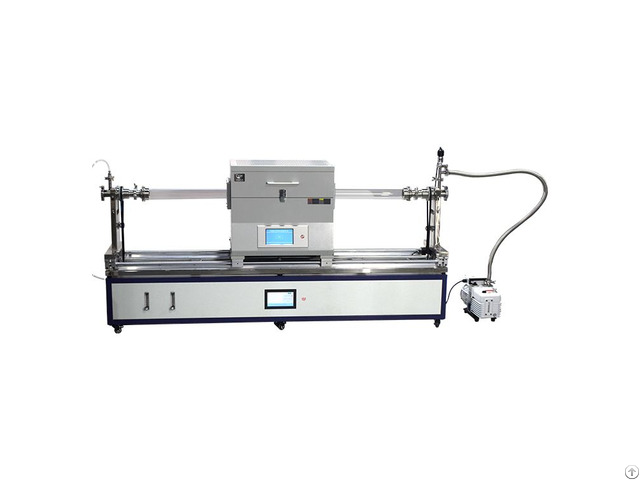

This product is a double temperature zone slide tube furnace.

There is a mixing partition board in the middle of the furnace tube, which can mix the powder and particles repeatedly with the rotation of the furnace tube.

Through the mechanical drive, the working pipe can rotate 360°continuously, so that the materials in the tube can be mixed and heated evenly.

The furnace body can slide back and forth on the support to realize rapid temperature rise and fall.

Two way float flowmeter can be used to inject two kinds of gas into the pipeline; high performance mechanical pump can quickly pump furnace tube to vacuum; through the cooperation of pump and flowmeter, a variety of CVD processes can be realized.

The rotating device is very suitable for continuously coating and modifying powder materials by CVD method in an atmosphere protected environment.
