Dual Target Magnetron Sputtering And Thermal Evaporation Composite Coating Machine - China

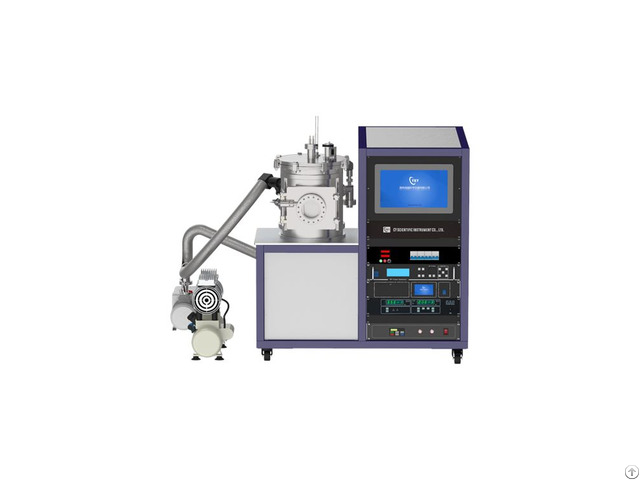

CY-MS500S-2TA1S magnetron sputter & thermal evaporation two-in-one coating machine can be used for the coating of electronic products, glass, ceramic samples, metal and other samples, especially suitable for sample preparation of laboratory SEM (scanning electron microscope).

The equipment is mainly composed of stainless steel vacuum chamber, magnetron sputtering target, evaporation source, rotary heating sample table, vacuum pump unit, vacuum measurement gauge, air intake system and control system.

Features

a.

Touch screen operation, temperature control meter detection.

Digital parameter interface and automatic operation mode provide users with an excellent research and development platform;

b.

The vacuum chamber is made of 304 stainless steel with observation window and baffle.

Beautiful shape, fine workmanship, excellent vacuum performance.

The main sealing flange is CF series high vacuum sealing flange.

Each interface of vacuum chamber is sealed with rubber seal ring, which has excellent vacuum performance and can effectively ensure the coating quality;

c.

The target is located at the bottom of the cavity, and the target is upward.

The sample table has the function of heating and rotating, which can make the coating effect more uniform;

d.

The vacuum acquisition system adopts two-stage vacuum pump group.

The backing pump is mechanical pump with high pumping speed, which can effectively reduce the time from atmospheric pressure to low vacuum.

The main pump is turbine molecular pump, which has high pumping speed and faster vacuum acquisition speed.

The overall vacuum acquisition system is clean and fast.
