Dual Head Rf Dc Magnetron Sputtering Coater For Scientific Research - China

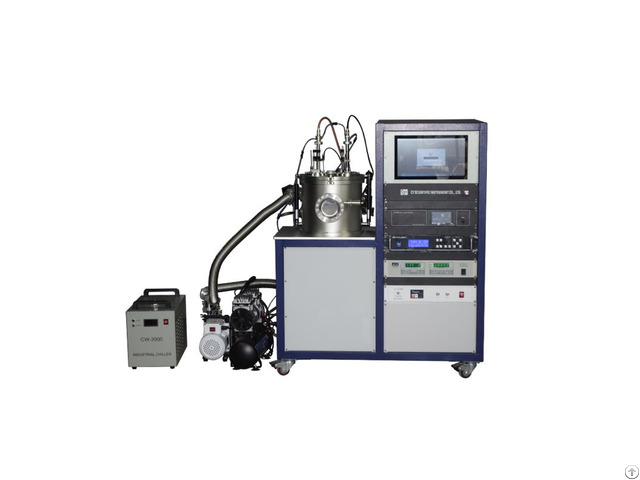

Dual-head magnetron sputtering coating instrument is a cost-effective magnetron sputtering coating equipment independently developed by our company.

It is characterized by standardization, modularization and customization.

There are 1 inch and 2 inches of magnetron target to choose from, and customers can choose according to the size of the plated substrate;The power supply is 500W DC power supply and 300W RF power supply, dc power supply can be used for the preparation of metal film, rf power supply can be used for the preparation of non-metal film, two targets can meet the needs of multi-layer or multiple coating.

The coating instrument has two high-precision mass flow meters.

Customers can customize the gas flow of up to four-channel mass flow meters if they have other requirements, so as to meet the requirements of complex gas environment construction.

The instrument is standard equipped with advanced turbine molecular pump set, the ultimate vacuum can reach 1.0E-5Pa, and other types of molecular pump are available for purchase.

The molecular pump's gas path is controlled by multiple solenoid valves, which can open the cavity to take out samples without turning off the pump, which greatly improves your work efficiency.

This product can be equipped with an all-in-one industrial control computer to control the system.

The computer program can realize the control of the vacuum pump group, the control of sputtering power supply and other most functions, which can further improve your experimental efficiency.

Dual-head magnetron sputtering coater application:

This device can be used for preparing single-layer or multi-layer ferroelectric thin films, conductive films, alloy films, semiconductor films, ceramic films, dielectric films, optical films, oxide films, hard films, PTFE films, and the like.

Compared with similar equipment, the dual-target magnetron sputtering coater is not only widely used, but also has the advantages of small size and easy operation, and is an ideal equipment for preparing material films in a laboratory.
