Digital Portable Spectrophotometer Ys3060 Compare To Konica Minolta Cm 2600d - China

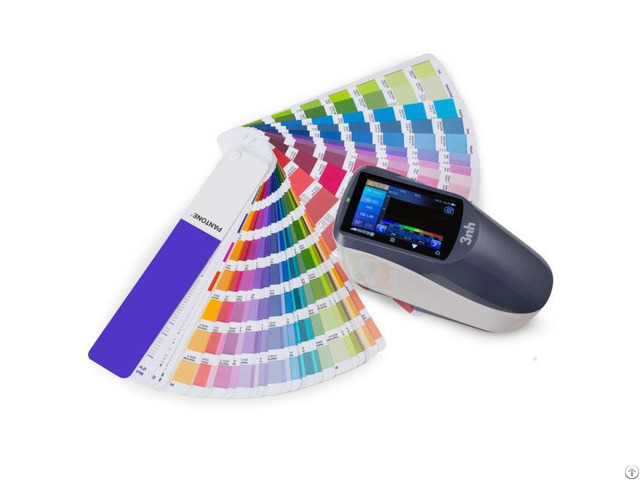

YS3060 UV Grating Spectrophotometer

Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.

Features A.

Perfect combination of beautiful appearance and the human body mechanics structural design; B.

D/8 geometrical optics, conforms with CIE No.

15, GB/T 3978, GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil C.

Use long life and low power consumption combined LED light source D.

Single 8mm aperture, support both SCI and SCE at the same time; E.

Measure sample spectra, accurate Lab data, can be used in color matching and accurate color transmission; F.

High electronic hardware configuration: 3.5-inch TFT color LCD, Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor; G.

USB port, widely useful; H.

Super stain-resistant and stable standard white calibration plate; I.

Large capacity storage space, over 20, 000 measurement data; J.

Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement; K.

Camera Locating Function, better position; l.

PC software has a powerful function extension.

Model Items YS3060 YS3020 YS3010

Optical Geometry Reflect: di: 8°, de: 8°(diffused illumination, 8-degree viewing angle)

Integrating Sphere Size 48mm

Light Source Combined LED Light, UV Light Combined LED Light

Spectrophotometric Mode Concave Grating

Sensor 256 Image Element Double Array CMOS Image Sensor

Wavelength Range 400-700nm

Wavelength Interval 10nm

Semiband Width 10nm

Measured Reflectance Range 0-200%

Measuring Aperture Dual Aperture: 10mm/8mm & 5mm/4mm Customized Aperture: 8mm/4mm/1×3mm Single Aperture: 8mm/10mm

Specular Component SCI&SCE

Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB

Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2: 1), ΔE*cmc(1: 1), ΔE*00v, ΔE(Hunter)

Other Colorimetric Index WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness

Observer Angle 2°/10°

Illuminant D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 D65, A, C, D50, D55, D75, F2, F7, F11 D65, A, C, D50

Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset

Measuring Time 2.6s

Repeatability MAV/SCI: ΔE*≤0.03 MAV/SCI: ΔE*≤0.05 MAV/SCI: ΔE*≤0.06

Inter-instrument Error MAV/SCI: ΔE*≤0.15 MAV/SCI: ΔE*≤0.2 MAV/SCI: ΔE*≤0.4

Measurement Mode Single Measurement, Average Measurement

Locating Method Camera View Finder Locating

Battery Li-ion battery.

5000 measurements within 8 hours

Dimension L*W*H=184*77*105mm

Weight 600g

Illuminant Life Span 5 years, more than 3 million times measurements

Display 3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port USB, Bluetooth 4.0 USB

Data Storage Standard 2000 Pcs, Sample 20000 Pcs

Language English, Chinese

Operating Environment 0~40ºC, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment -20~50ºC, 0~85%RH (no condensing)

Standard Accessory Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover

Optional Accessory Micro Printer, Powder Test Box

Notes: The specifications are subject to change without notice.

Application Industry 3nh handheld spectrophotometer can easily achieve color transferring, and be used as a precision instrument for color matching system.

It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
