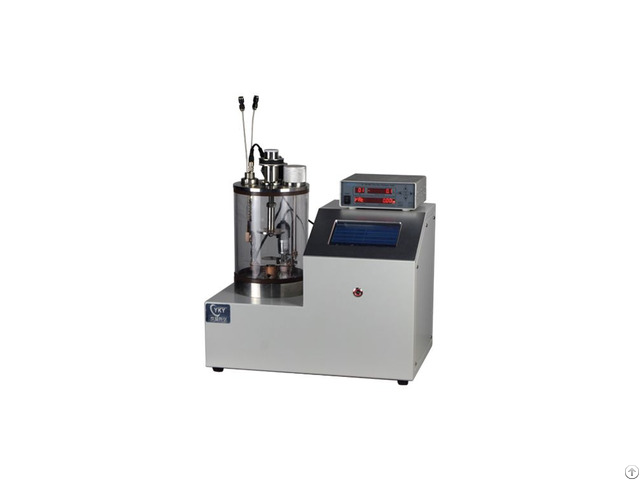

Desktop Vacuum Thermal Evaporation Coater With Film Thickness Monitor - China

The minitype evaporator can be used for vacuum evaporation deposition coating research.

The maximum coating current can reach 100A, and various metal films and some non-metallic films can be deposited.

It is used for the preparation of electrodes and organic light-emitting diodes.

The instrument is small in size and can save laboratory space effectively.

It is an ideal laboratory PVD equipment with simple operation and strong adaptability to different materials.

This product has the following characteristics:

1 - This equipment uses a quartz chamber, which is easy to clean and put in samples;

2 - Using tungsten wire basket or tungsten boat as the heating source, the maximum temperature can reach 1700℃;

3 - Inert gas can be introduced into the vacuum chamber to clean the chamber, or reactive gas can be introduced to perform reactive evaporation coating.

4 - The air inlet is equipped with a needle valve to adjust the air flow.
