Compact Bridgman Crystal Growth Furnace With Hanging Wire Mechanism Up To 1100 - China

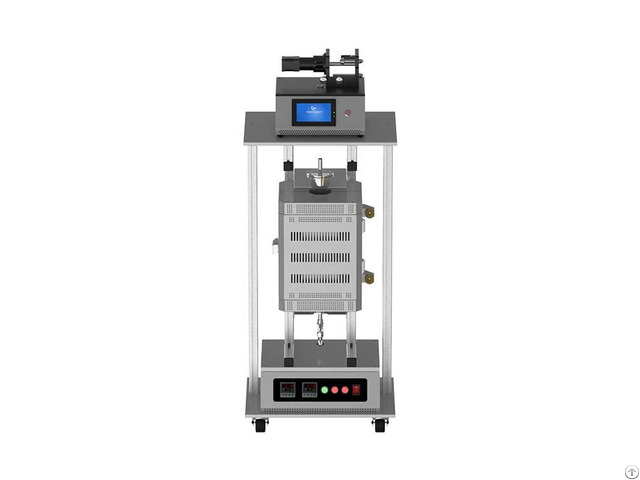

CYKY-1200X-S-VT-BMGH is a compact and economic 1200℃ Maximum Bridgman crystal growth furnace with 2" quartz tube and precision hanged wire travel mechanism, which is designed for growing small size crystal under control atmosphere or sealed quartz crucible at low cost.

Vertical Two Zone Tube Furnace：

Compact two zones split vertical tube furnace

Working Voltage: 110V AC or 220V selectable

Max.

Power Consumption: 1.5 KW

Two Heating Zone: 100 mm L for each Zone, 200 mm L in total Max.

heating temperature: 1200℃

Continuous working temperature: 1100℃

Two programmable digital temperature controllers which control two heating zone independently

Max.

Temperature gradient: 1℃/Cm Finding a suitable thermal gradient is user responsibility Adjusting two heating zone's temperature can create different thermal gradient profile Adjusting furnace opening diameter also can change the thermal gradient

Quartz tube (2" quartz tube (50mm O.

D x 44mm I.

D x 600mm L) is included with sealed flange)
