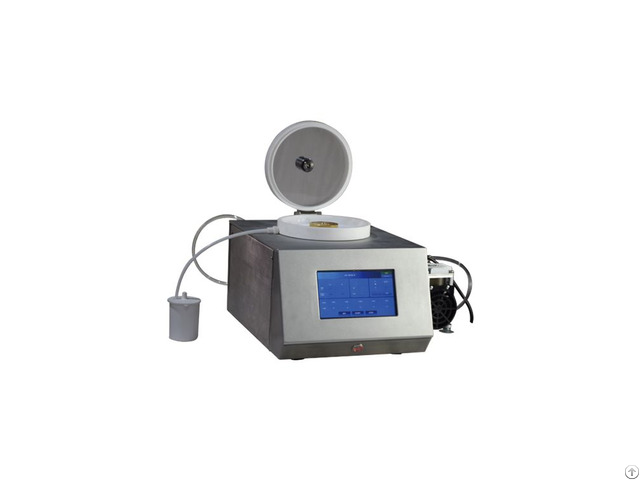

Bottom Heating Anti Corrosion 4 Inch Spin Coater For Semiconductor Research - China
price: 8600.00 Dollar US$
The spin coater uses the centrifugal coating principle to coat liquid or colloidal materials on silicon, crystal, quartz, ceramics and other substrates to form thin films.
This technology is widely used in the field of material research.
The working chamber is made of polytetrafluoroethylene (PTFE) (known as "Plastic King").
Polytetrafluoroeth ylene(PTFE) is a polymer compound formed by polymerization of tetrafluoroethylene.
It has excellent chemical stability and strong corrosion resistance.
It has been widely used in various occasions that require resistance to acids, alkalis and organic solvents.
The upper cover is made of PVC material, which has high light transmission and can observe the spinning coating process.
The bottom of the chamber has a glue discharge port for easy disposal of waste liquid, which can be collected into a liquid collection bottle outside the spin coater.
The equipment is equipped with three vacuum chucks, all of which are gold-plated on the surface, with good corrosion resistance.
At the same time, the bottom of the chamber can be heated to 200℃ and transferred to the sample through the suction cup to maintain the temperature of the sample during the spinning coating, which can effectively prevent the premature solidification of the glue liquid.
Company Contact:
- Posted By: Zhengzhou CY Scientific Instrument Co., Ltd.
- Phone: +86 37155199322
- Address: No. 820, 8th Floor, 1st Unit, 9th Block, Cuizhu Street, High-Tech Zone, zhengzhou , HeNan , China
- Email:
- Website: https://www.cysi.wang
Published date: December 30, 2020
- Business Description: Our mainlyproducts include high temperature furnace,include 1200/1400/1700 degree muffle furnace,1200/1400/1700 degree tube furnace, dental furnace, vacuum furnace,gold melting furnace, SiC heating element, MoSi2 heating element, alumina tubes and crucibles, and etc.
We have our own manufacturing base factory as while as many sub-contracting factories, which enable us a reliable manufacturing ability and quality control system.
We are capable of supplying both the equipment and technologies according to customers' different requirements and realities, and we have lots of successful projects in many different countries and regions, like East Europe, South Asia, South America, Australia and New Zealand, and Africa.
"Profession, Quick Response, Hard Work, and Sincerity" is the strength of our team, earning us a sound reputation among our clients.
We are open and willing to work with clients from different countries and regions.
