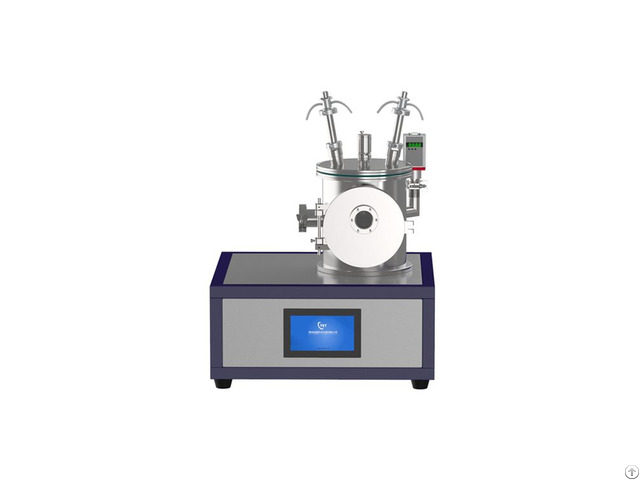

Bench Top Double Target Magnetron Sputtering Coater With High Vacuum Stainless Steel Chamber - China

This equipment is a dual-target magnetron coating instrument, which can be used for the preparation of metal films, in the field of electronics, optics, special ceramic preparation and other fields, and also can be used for the preparation of SEM samples in the laboratory.

This set is equipped with high vacuum stainless steel cavity, front door type design, the door is equipped with quartz observation window, convenient for experimental observation record.

At the same time, the equipment is equipped with a rotating heating sample table, which can effectively improve the uniformity of the film and the quality of the film.

A set of baffle is installed on the top cover, which can switch between two targets by rotating baffle to realize multi-layer coating film.

This equipment needs to be used together with high vacuum molecular pump group.

Users can choose imported brand small molecular pump to further save the installation area.

At the same time, this model can be equipped with an optional film thickness meter module, which can monitor the film thickness data in real time and provide reliable parameters for the experimental process.
