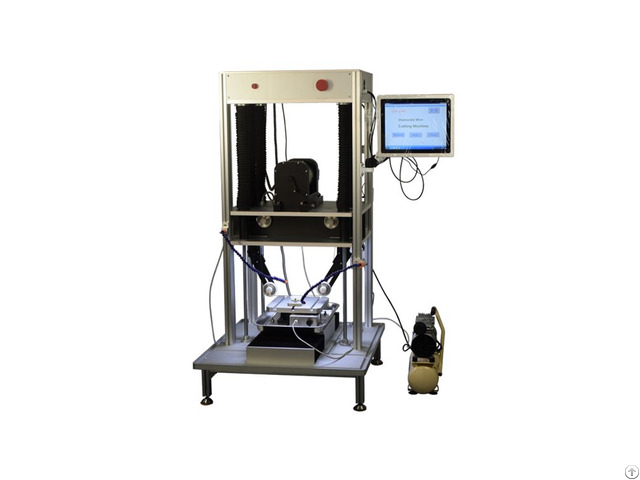

Automatic Diamond Wire Cutting Machine For Cuting Large Size Samples Up To 12 Inch - China

The automatic diamond wire cutting machine is suitable for cutting materials with different hardness, such as ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared optical materials, composite materials and biomedical materials.

It is mainly used for processing large-sized precious materials, and the cutting size can reach 24".

CY-DWC300-A automatic diamond wire cutting machine is especially suitable for cutting large-size samples.

It can also be used for cutting seed crystals of artificial crystal materials such as silicon, white sapphire, and sapphire, as well as square cutting of silicon crystals and sapphire crystals.

When used in the slicing of precious gemstones and biological plasticized specimens, not only the slits are small, but the quality of the cut pieces is excellent, which greatly improves the utilization rate of materials.

The CY-DWC300-A automatic diamond wire cutting machine is a continuous cutting diamond wire cutting machine.

After the cutting program is set, the sample is continuously fed without manual adjustment.

The size of the sample after cutting has high accuracy, within the range of ±10μm.

The cutting wire of CY-DWC300-A automatic diamond wire cutting machine adopts a single wire reciprocating movement mode, the length of the usable wire is long (≤270m), the service life of the wire is long, and the cutting efficiency is greatly improved.

The tensioning wheel adopts pneumatic tensioning mode, and the air pressure can be adjusted according to the thickness of the wire diameter.

When the wire diameter used is too small, it can also effectively protect the cutting wire without breaking due to excessive tension.

This machine is especially suitable for the cutting of large samples, especially the cutting of samples over 12".
