1600 Top Seeded Solution Growth Tssg Furnace For Growing Various Single Crystals - China

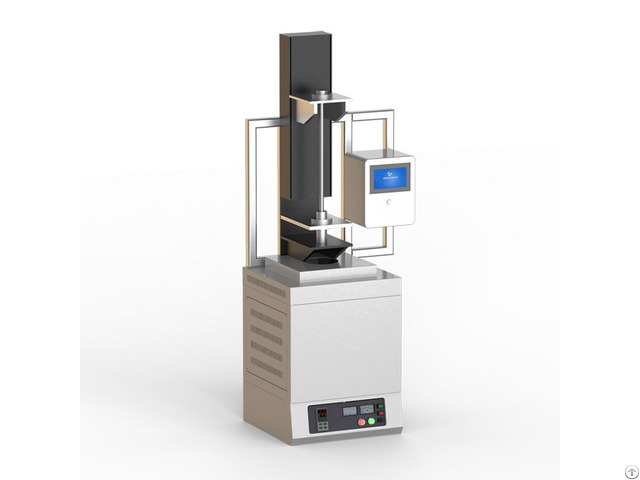

CYKY-1600X-TSSG is a top seed solution growth (TSSG) furnace for growing various single crystals via flux solution.

The box furnace uses alumina fiber as the furnace chamber material and MoSi2 as the heating element.

Its chamber size is φ330mm × 250mm (H), and the maximum temperature can reach 1700 ℃.

30-segment programmable precision temperature controller, which can set heating and cooling temperature program according to different customer needs, the temperature control accuracy can reach ± 1 ℃, equipped with a precision pulling and rotation mechanism can be used to grow various crystal materials via top seed crystal flux solution, pulling speed and rotation speed can be customized according to customer needs.

Furnace construction:

1 - Furnace material, using alumina polycrystalline fiber

2 - The double-layer shell structure is adopted so that the temperature of the shell surface is less than 60℃

3 - The heating element adopts high-quality silicon-molybdenum rod

4 - Internal heating zone size: Φ330mm × 250mm (H) (21 Liter) Effective heating area: φ200mm × 250mm (H) (8L)
