15kw Multi Cavity Induction Melting Furnace For Hi Throughput Alloy Research - China

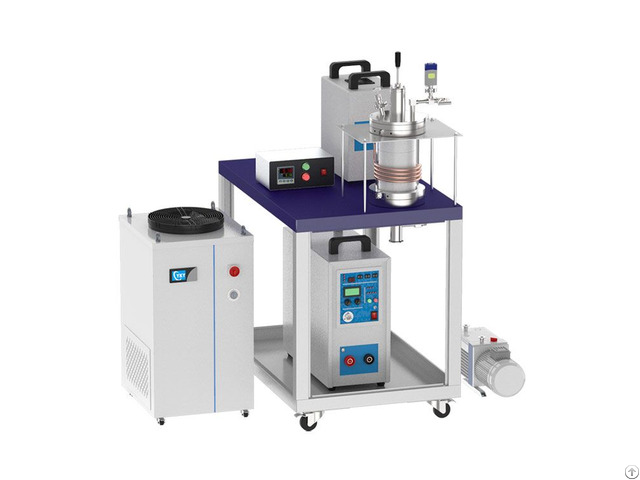

CY-50KTC-M is a temperature-controlled induction melting system with multi-cavity, which can melt and solidify multi-alloy rod of 5-8 mm diameter at different composition up to 2000°C It is an ideal tool for high throughput material genome research to search new generation alloy.

Induction Heater:

Working Voltage: 220V, 50/ 60Hz, Three Phase

Working Current: 5~52 Amps (60A breaker required)

Max.

Input Power: 15 KW Output Frequency: 30 - 80 kHz Duty Cycle: 80%

Induction Coil: 150mm(OD) x 140mm(ID) x 65mm(H) Air Cooling: Rear Fan

Protection: Automatic water pressure, over-temperature, and overpower protection

Refractory Assembling: Complete refractory assembling made of alumina, including bottom crucible support, crucible holder and cover

Please contact us by email for details.
