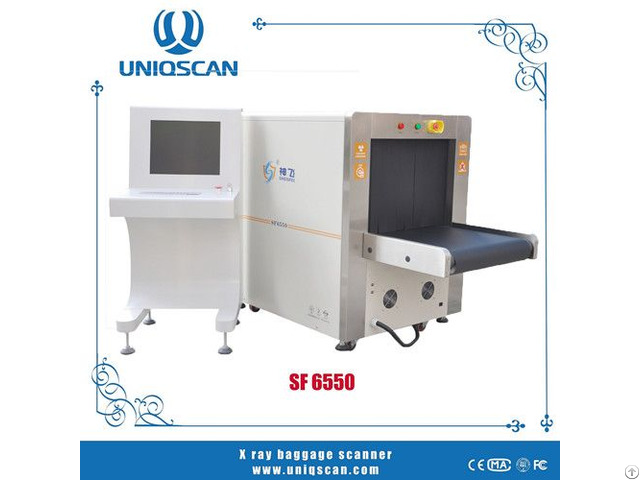

X Ray Baggage Scanners Sf6550 - China

Features

Dual Energy, L-shaped array detector

apan HAMMATSU detector crystal, Detecting board from Deetee Finland.

IPC from Taiwan, Interroll Roller from German

High-resolution PHILIP 19 inch color LCD display

Four colors to distinguish organic, inorganic and dangerous material

Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming, Image enlarge, recurrence, restoration, storage, network

Parameter

General specification X-ray Generator

Tunnel Size : 650(W)×500(H)mm

Orientation: Upward;

Conveyor Speed: 0.22m/s Tube Current: 0.4~1.2MA(adjustable)

Conveyor Max Load: 170 kg Anode voltage: 100~160KV(adjustable)

Single inspection dosage: < 1.2μGy

X-ray divergence angle: 80 °

Leakage radiation dosage: ≤ 0.1µGy/h Generator cooling/working periods:

Wire resolution: 40AWG sealed oil bath with forced air/100%

Spatial resolution : 1.0mm Horizontal ；1.0mm Vertical X-RAY Sensor:

Steel Penetration: 38mm steel plate L-shaped array detector, Film safety: for ISO1600

Image Performance System

X-ray sensor---L type photodiode array detector (energy), 24 bi depth；

Display---High-resolut ion liquid crystal display, 24-bit color；

Color management architectures---Different color, different matter；

Inverse, white/black/colorized---F or compare these images to find the suspected dangerous goods

To eliminate organic, Inorganic out---In view of the most important image;

Edge enhancement---The edge of image is more clear；

High penetration---Make the image more through, for look every goods in one image ；

Zoom in/zoom out---Make the image bigger, make the image smaller；

1 times size of image---Make image back to 1 times size of image;

Brighter/darker---Make image more bright /make image darker；

Replay---Playback all images on the screen at current, be able to do the next steps；

Application and Certifications

used for scenic spots, gymnasium, expo centre, left- baggage counter, supermarket, hotel, court, prison.

etc

Machine parts safeguard measures

High performance network function

Chinese ministry of public security testing

EU CE Certification

ISO9001 Certification

ISO14001 Environmental Management

Radiation safety certification from China Government
