Web Smart 16 100m 2combo Giga Uplink Poe Switch - China

S2218-P

16+2G Web managed POE Switch with internal power supplies

Product Description:

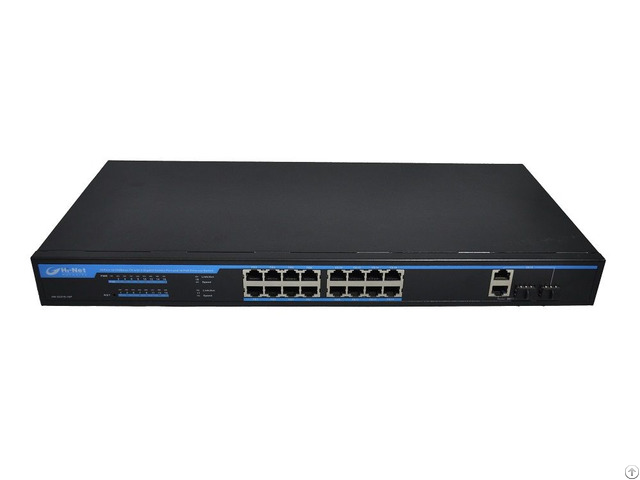

The S2218-P is a 16+2G web-managed POE switch which is designed by Shenzhen Hi-Net Technology Company.

It provides 16 10/100Mbps Auto-Negotiation RJ45 ports, 2 Gigabit Combo Ports (SFP+RJ45) and 8 or 16 POE ports.

The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

It have the web-interface firmware to control the network switch function and the POE parts, to the POE parts.

The firmware can set POE ON/OFF function based on time and can restart the PD devices if can not signals from them.

The S2218-P is a 19’’ case-shaped device with 1U high.

It is with the internal industrial power supplies, have two optional power supplies—250W, 400W.

All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max.

Extend Function: Power lightning protection.

Product Features:

• IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

• Provides 16 10/100 Base-TX ports, 2 Gigabit Combo Ports (SFP+RJ45)

• Provides 8/16PoE ports, Each POE port output 30W max power

• Build in power supplies, optional 250W or 400W

• High back-plane bandwidth 7.2Gbps

• Port mirror and bandwidth control

• IEEE802.3x Flow control

• Support Port Based VLAN / 802 .

1Q Tag VLAN

• Support IEEE802.3ad Port trunk with LACP

• Supports IEEE 802.1p class of service

• Support Broadcast storm filter

• Support DHCP client

• Management by Web

• Pin Feet: V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)

• Surge protection for power port and data ports

• EMI standards complies with FCC, CE class B

• Extend Function: Power lightning protection.

Product Specifications:

Item Description

Summarize

Fixed port 16 10/100Base-TX ports, 2 Gigabit Combo Ports( SFP+RJ45)

LED Indicators PWR, PoE, Link/Act LED.

Input voltage 100V～240V AC, 50/60Hz

Network Media 10BASE-TX: UTP category 5, 5e cable (≤250m)

100BASE-TX: UTP category 5, 5e cable (≤150m)

1000BASE-TX: UTP category 5, 5e cable (≤150m)

Uplink Fiber Port: Single Fiber 20KM, Double Fiber: 20Km

Forwarding Rate 10BASE-T: 14880pps/port

100BASE-TX: 148800pps/port

1000BASE-TX: 148800pps/port

Power Supplies 250W, 400W optional

Operating temperature 0℃～40℃.

Storage temperature -10℃～70℃.

Relative humidity 20%～85% (non-condensing).

Thermal methods Built-in Noiseless FAN.

PoE

PoE port 8/16 10/100Base-TX ports.

PoE Standard IEEE802.3af, IEEE802.3at

Pin assignment V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).

Layer 2 Switching

Switching capacity 7.2G

MAC address table 8K.

Jumbo Frame 2K.

Port Feature Port Control.

Port Mirroring Support.

VLAN 4K VLANs.

Traffic control IEEE 802.3x full-duplex flow control.

Rate Limit Unit: 64kbps.

Convergence

QoS 4 output queues on each port.

Scheduling Method: Strict Priority, Weighted Round Robin.

Support port-based classification.

Management

WEB Support WEB management system.

Configuration File Download/Upload Support Download/Upload configuration File via WEB.

Upgrade Firmware Support Upgrade Firmware via WEB.

Package

Unit Size 44*20*4.4cm

Weight <4.5KG

package Carton Box

Package S2218-P POE Switch

User Manual

Warranty Card

Power Cord*1

Rack Mount Kit*2

Rubber Feet*4

Order Information:

S2218-8P-250W 16+2G Web-Managed Switch 8 PoE ports (Total power 250W)

S2218-16P-250W 16+2G Web-Managed Switch 16 PoE ports (Total power 250W)

S2218-16P-400W 24+2G Web-Managed Switch 16 PoE ports (Total power 400W)
