First, the use of Introduction:

High pressure pull lever is one of the most commonly used safety tools for electric power operators.

It is mainly used for stopping operation of equipment such as distribution transformer and line switch, such as turning on or off the high voltage disconnector and dropping insurance.

In the actual operation of the power system, we often encounter the following situations: (1) night operation, the operator holding the brake lever, the guardian hand-held torch lighting, poor observation, both a waste of manpower, distracting, inconvenient (2) the traditional pull bar is generally fixed head, if the disconnector, drop insurance and other equipment installation location and the handle bar head angle is not right, often caused by the head difficult to hook the operation of the object occurred.

(3) power failure, with the brake lever to disconnect the operation of the object, the re-use of the electret to power outage equipment for electricity, that is to say that power failure maintenance operations, must carry the switch lever and electroscope two safety tools with the operation, Very inconvenient, and easy due to leak with the electroscope and not check the inspection work, resulting in contact with the operator connected to the ground wire caused by electric shock accident.

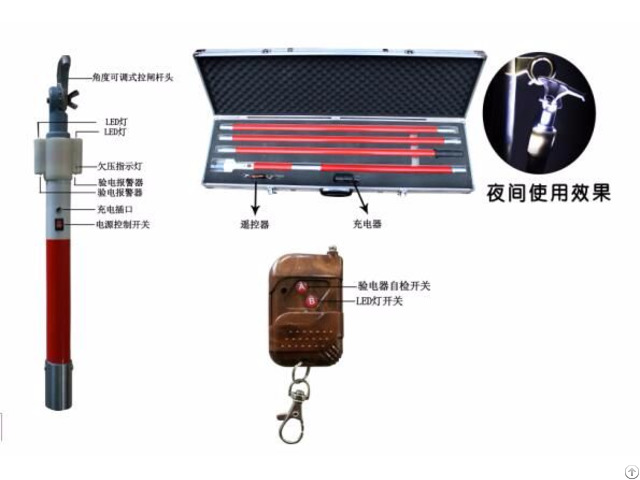

For this reason I developed a set of lighting alarm function in one of the pull lever.

2 - Instructions for use:

1, the charging voltage 220v 50Hz

2, the initial use of need to charge 2-4 hours

3, the use of finished turn off the power, not the battery for a long time in no power state, the longest charging time of not more than 5 hours

4, such as a long time do not have to charge once a month

5, rods do pressure test when the whole do not do the experiment, because the top section of electronic components, please remove the bottom section to do the test

6, the use of remote control, the function bar power should be opened, the farthest remote control distance: 120 meters (open space)

7, the product of the electroscope electrical inspection function for the induction: sensing distance of 60cm (according to the need for a separate design)

8, undervoltage function: the voltage is low, the undervoltage indicator light will be

Fourth, lithium battery precautions

1 - In accordance with the standard time and procedures to charge, even the first three times to do so

2 - When the power is too low, it should be charged as soon as possible

3 - Lithium battery activation does not require a special method, in normal use lithium battery will naturally activate.

Fifth, the use of precautions

1, when using the brake lever, please open the use of the switch lever of the power switch to prevent the power switch is not open, resulting in remote control can not remote control electroscope self-test and LED lights switch.

2, do not use the pull brake lever, please turn off the power switch, increase battery life.
