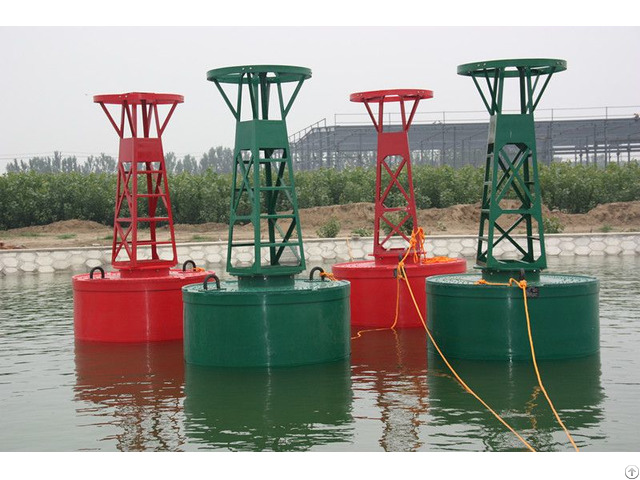

Uhmwpe Navigation Buoy - China

Innovations of UHMWPE Marine Buoys

I.

Maintenance-free:

1, The colour is materials' own colour.

There is no need to paint in 10 years, saving manpower and resources for painting.

2, The floating body has strong self-lubrication, and any water growth could not adhere the tail pipe and floating body, saving time and manpower to shove it.

3, The buoy is higher anti-impact, so it can greatly reduce the chances of being damaged and save manpower and resources to repair.

4, The ballast, treated by anti-corrosion, is placed into the closed tail pipe, avoiding water corrosion .

II.

Impact-resistant:

1 - The material of floating-body has a higher degree of flexibility and hardness.

( The Rockwell hardness of floating-body material is 40, while the Standard Steel material is 45), when impacted by external power, it can absorb the energy rapidly and restore the prototype.

2 - With light weight and small inertia, when impacted, the buoy can quickly shift to resolve the impact force, avoiding damage.

3 - With higher flexiblility, anti-stretch, and tear strength, the floating buoy can maximize the absorption of impact force.

4 - The floating body is designed with special structure, the polyurethane foam's pouring density ≥46kg/m3, which plays a strong support to the floating body, ensuring the floating body can quickly resore after impacted without deformation.

5 - The lamp bracket uses composite materials, many improvements have been made on the basis of national standard.

The security, anti-impact ability, life expectancy have been substantially increased.

6 - Floating body is connected with lamp bracket by 316L-M20 marine grade stainless steel bolts

7 - New safety guard has powerful anti-deformation capability and improves the protection of lighting and solar panels.

III.

Long life:

1 - With high chemical stability and high anti-corrosion, the buoy will not decompose for decades in the seawater, meanwhile, it will not pollute the water.

2 - The floating body and tail pipe are very resistant to outdoor ultraviolet radiation.

It will not be aging for decades and the mechanical properties will not change.

3 - Lamp bracket is specially treated for anti-rusty, so its working life could be more than 20 years.

4 - With special structure, the ultimate working load of each lifting eye will be more than 60 tons.

IV.

High Environmental Protection

1 - Imported Germany pigment is used, so the color is material’s own color, no pollution to environment.

2 - No anti-fouling paint used, so it will not pollute environment.






Comparisons of Different Buoys

Item UHMWPE Single Body

Buoy Plastic Split Combinded Buoy Steel Welded Buoy

Material High strength plastic—

UHMWPE Common Plastic, e.

g Polyethylene Steel

Structure Performance Single body, high density PU foam filled, steel frame inside Combinded body, no polyurethane foam, no steel frame Single body, no polyurethane foam

Maintenance No need paint and water growth cleaning for the tail pipe and buoy body.

Need paint 1 time, water growth cleaning 1 time per year Need paint 1 time, water growth cleaning 1 time per year

Deployment Small vessels

Small vessels Large vessels

Environmental Protection No pollution Need painting for tail pipe and light stand, pollute environment Need painting for the whole buoy, pollute environment

Service Life 50 years

10 years

5 years

Impact resistance Higher resilience, no deformation, no damaging, no leaking, no leaning, and no sinking, maintenance-free, continual use available Leaking, leaning, and sinking occurred once impacted, the buoy could not work again.

Leaking, leaning, sinking, and damaging vessels occurred once impacted, the buoy could not work again.





Navigation Buoy Specification

Size Buoy Diameter

mm Buoying

Depth

m Freeboard

mm Focal Height

mm Net Weight

kg Height

mm Reserve Buoyancy

kg

CMB800 800 1.5—10 510 1100 200 2900 309

CMB1200 1200 2—20 600 1900 410 3000 575

CMB1500 1500 7—35 660 2400 550 4280 1095

CMB1800 1800 10—70 880 2860 1100 5034 2238

CMB2100 2100 10—90 800 3280 1869 5657 2450

CMB2400 2400 10—90 960 4040 2832 6930 3950

CMB3050 3050 20—120 920 4220 3270 7680 6343

CMB3500 3500 20—150 960 4640 4120 8530 8840
