Speed Turnstile Gate Jdsg 27 - China

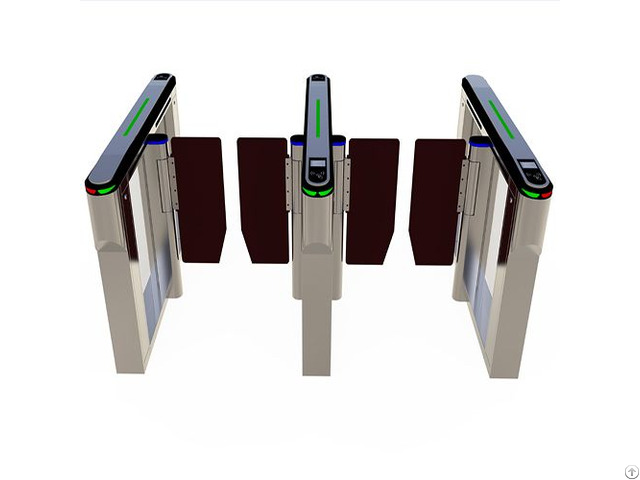

2022 latest design speed turnstile gate, speed gate security turnstile is designed minimal footprint for maximum throughput Speed turnstile gate JDSG-27 is sturdy, durable and high-intensity impact resistent, designed with a slim and stylish look for narrow entry areas where autonomous entry and aesthetics are important.

Speed gate turnstile JDSG-27 runs in a smooth, fast and reliable way, providing an ideal contactless solution for access control and comfortable passage in an intense flow of people, avoiding queues at the entrance and exit.

The standard (600mm) and wide (900mm) lane widths are available to meet different application requirements, and the height of tempered glass panels 1.0m, 1.2m or 1.8m are available to provide increasing levels of security as required.

Speed turnstile gate JDSG-27 can be configured to allow access in a single direction or bi-directionally depending on actual requirements and simply integrates various access control systems to support muliple verification methods.

In addition, speed gate security turnstile JDSG-27 is designed in compliance with the most stringent safety and security standards, and widely used in corporate lobbies, high rise building entrances, luxury apartment complexes, universities.

Speed Turnstile Gate Featurers

1 - Accurate tailgating detection

2 - Precision controlled movement of obstacles and detection of all obstructions

3 - Reinforced detection to enhance user protection and manage passage of luggage

4 - Obstacles automatically open to free the passage in case of power failure

5 - Minimal footprint for maximum throughput

6 - Unique detection algorithm prevents fraudulent entry with greater user safety

7 - Smooth integration of proximity, magnetic card readers, biometric scanners and other user authentication systems

8 - Transparent and elegant design

9 - High-density matrix of infrared beams follows users’ progression through the gate

10 - The swing panels are available in heights of 1.2m, 1.4m or 1.8m to provide increasing levels of security as required.

Speed Turnstile Gate Applications　

Offices

Banks

Public institutions

Data centres

Sensitive sites

Schools and universities Speed Turnstile Gate Parameters

Housing Material: #304 stainless sheet

Dimension: 1400 x 160 x 980mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 600~900mm

Drive Motor: DC 24V brushless motor or servo motor

Pass Speed: 35 ~45 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Gate open when power failure: Yes

Open Time: 0.2 second

Life Cycle: 5 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor (with shelter)
