Security Check Equipment X Ray Baggage Scanner Sf8065 - China
price: 1.00 Dollar US$
Product Description

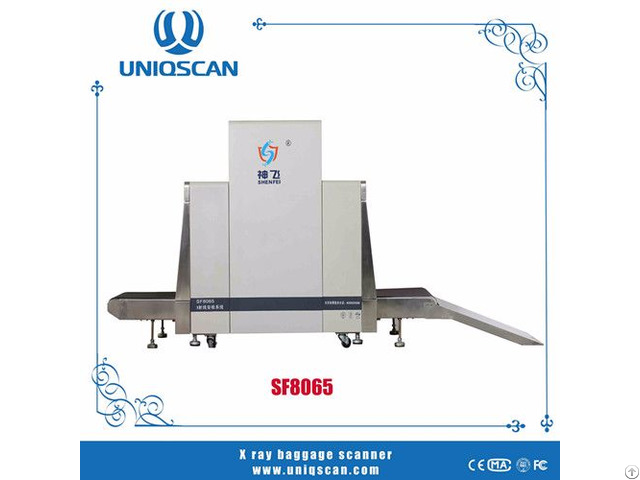

X-Ray Baggage Inspection Machine
Model: SF8065
General Specifications
Tunnel Size : 800 (W) * 650 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200 kg
Single inspection dosage:
< 1.15μGy
Leakage radiation: <0.14µGy/h
Wire Resolution: 40AWG
Steel Penetration: 38mm
Film Safety: For ISO 1600
X-RAY GENERATOR
Orientation: Downward
Tube Current: 0.4~1.2mA(adjusta ble)
Anode Voltage: 100~160KV(adjusta ble)
Angle: 80°
Generator cooling/working periods: Sealed oil bath with forced air/100%
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<55DB
X-RAY Sensor:
L-shaped array detector, 24bit
Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in operation status
Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue,
mixture in green
Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
Company Contact:
- Posted By: Shenzhen Unisec Technology Co., Ltd
- Phone: 8675528793799
- Address: 3/F Building A1, Fenghuang Industrial Park, Fenghu, Shenzhen , China
- Email:
- Website: https://uniqscan.com
Published date: June 20, 2016
- Business Description: Our company is called Shenzhen Unisec Technology Co., Ltd a professional
baggage x-ray scanner equipment manufacturer, specialized in the
development and research of the x-ray imagine technology, metal
detection technology, explosive detection, liquid detection and relative
security services.
