Home Fire Fighting System Combustible Gas Leak Detector Tester Natural Meth - China

Home Fire Fighting System Combustible Gas Leak Detector

Tester Natural Gas Methane Alarm Multi Gas Monitor Home

Safety Equipment

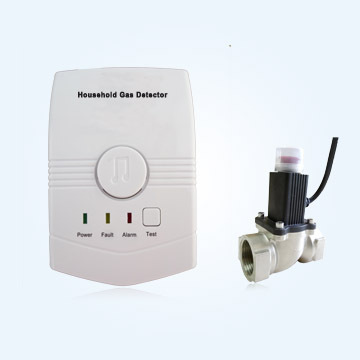

Gas Detector with Lithium Battery and Solenoid valve

when the gas detector detect gas leak, the detector will

send out sounds and flashed light , and automatically send a

signal to shut off valve to cut off gas, giving people the

opportunity to leave the dangerous area.

Product model： AK- 200FC/ LS3

Gas detector

1 - Power supply: 110VAC/ 220VAC/ 230VAC/ 240VAC, Backup 7.2V

lithium battery

2 - Sensor: Semiconductor type sensor

3 - Alarm volume: ≥ 80dB

4 - Alarm density:

5 - Liquid petroleum gas: 1000ppm - 5000ppm

6 - Natural gas : 1000ppm- 10000ppm

7 - Responding recovery time: ≤ 30S

8 - Li- Battery capacity: 1200mha, battery mode : about 24 hours

9 - Detachable shut off valve wire.

10 - Dimensions: 163mm* 87mm* 40mm

Solenoid valve

1 - Valve body materials: brass alloy

2 - Material for sealing: NBR rubber

3 - Operating temperature: 0 oC ~50oC

4 - Test operating pressure: 100 KPa

5 - Connection style: G1/ 2”( DN15A) / G3/ 4”( DN20A) / G12”

6 - Valve opening: reset manually

7 - Standards followed: Q/ TDBX01- 2003

8 - Valve closing: direct current pulse drive or manually

9 - Driving voltage: 9VDC to 12VDC

10 - Driving current: <1.5A( pulse)

11 - Closing time: <1s

12 - Explosion- proof type: seal

13 - Explosion- proof remark: ExmIIT4

Additional Function：

Gas detector can work with shut off valve( manipulator or

solenoid valve) , wired NO or NC/ wireless 315mhz or 433mhz

signal output, networking alarm function, connecting the

exhaust fan etc.

Application

Application for household kitchen, gas station and Co-

operated with gas company, fire- fighting company, property

management company, housing corporation, Construction

engineering

Company Information：

We are the professional household gas detector alarm

manufacturer with 12 years experiences, mainly produce

Household Combustible gas Leak Detector Alarm / Carbon

monoxide Detector/ Compound ( gas & CO, heat & smoke, gas &

smoke & CO ) Detector/ Smoke Detector / Heat Detector,

Solenoid Valve, Manipulator with good quality and

competitive price.

Welcome to China and visiting our factory!

Company Contact:

• Posted By: Shenzhen Lingbao Electronics Co,. Ltd.

• Phone: 8675526518828803

• Address: East, 5/F, 9th Building, Sunshine Industrial Estat, Shenzhen , China

• Email:

• Business Description: Shenzhen Lingbao Electronics Co, .

  Ltd. locates in Shenzhen China,

  established in 2002, is a professional design and manufacturing company

  of fire and security alarm products , with more than 12

  years experiences, especially in natural gas/LPG/coal gas detector , the carbon monoxide detector, Compound detector, smoke alarms , toxic gas detection system.

  Our products cover combustible gas detector, fixed gas alarm sensor, portable gas detector , CO/carbon monoxide detector, multi gas detection Tools, , wireless smoke detector test, gas analyzers, home

  fire alalm systems, household gas leak tester, gas monitor, water/heat detector, home security devices products, and other security & protection products as building fire fighting equipment.

  All of our

  products have obtained CE, RoHS certificates from SGS.

  We offer high quality product for the best return of investment on your projects in fire, security and safety applications.

  At the same time our company runs OEM & ODM processing.

  We offer best prices, service and reliable QC inspection.

  Our experienced engineers can design and perform products development for your

  special requirements.

  Welcome to China and visiting our factory!
