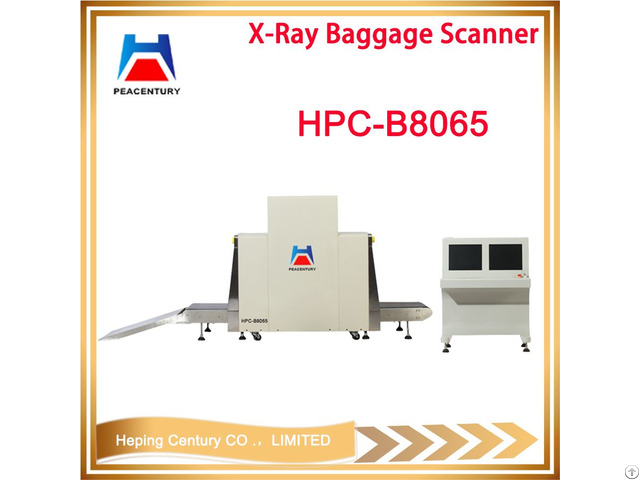

High Resolution Dual Energy Security X Ray Baggage Scanner 8065 - China

TUNNEL SIZE: 800(w)*650(H)mm CONVEYOR SPEED: 0.22m/s

TYPE: Mutil Energy CONVEYOR: 250 Kg

STEEL PENETRATION: 38mm WIRE RESOLUTION: 40AWG

WARRANTY: 2 Years PRODUCT NAME: X-ray Baggage Scanner

High resolution dual energy security x-ray baggage scanner 8065 General Specifications

Tunnel Size : 800 (W) ×650 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 250 kg

Single inspection dosage: < 1.32μGy

Wire Resolution: 40AWG

Steel Penetration: 38mm

Film Safety: For ISO 1600 Orientation: Upward

Tube Current: 0.4~0.7mA(adjustable)

Anode Voltage: 80KV(adjustable)

Angle: 60°

Generator cooling/working periods:

Sealed oil bath with forced air/100%

Conveyor rolls in both two directions

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<65DB

X-RAY Sensor:

L-shaped array detector

24bit

Single energy

Image Performance System:

Display: High-resolution 19 inch color LCD display

Company Contact:

• Posted By: Shenzhen Heping Century Technology Co., Ltd

• Phone: 8617820602014

• Address: Longgang District, Shenzhen , Guangdong , China

• Email:

• Business Description: Business Type：Manufacturer& International Trading Company

  Location：Shenzh en，China (Mainland)

  Main Products：Walk Through Metal Detector，X-Ray Baggage Scanner，Hand Held Metal Detector，Under Vehicle Inspection System，Hydraulic Rising Bollard，Hydraulic Road Blocker，Tire Killer，Gold Detector，Barrier Gate etc.

  SHENZHEN HEPING CENTURY TECHNOLOGY CO., LTD （PEACENTURY）is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine technology, metal detection technology, explosive detection, liquid detection and relative security services.

  We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

  We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .
