Drop Arm Turnstile Jdyzz 1a - China

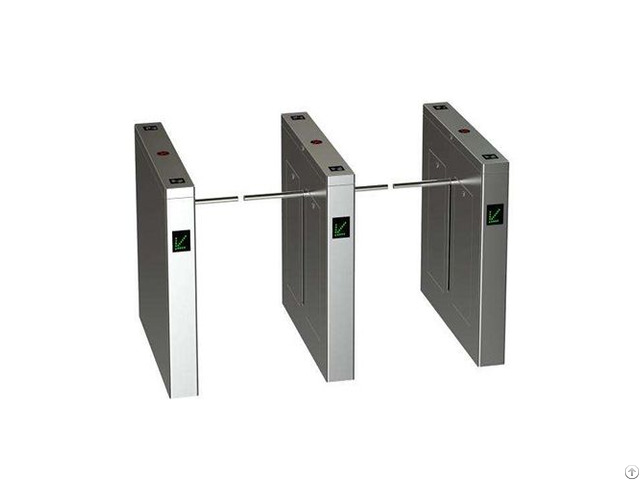

Reliable & affordable drop arm turnstile, drop arm security turnstile, optical lane drop-arm turnstile supports rapid throughput Drop arm turnstile JDYZZ-1A is made of high quality stainless sheet and designed with intuitive colored LED lights guiding users from entry through the authorization and onto the secured side, providing a fast, durable, smooth way with low noise and low power consumption.

By using an array of optical sensors to determine the number and direction of persons passing through the security turnstile lane, optical lane drop-arm turnstile JDYZZ-1A efficiently controlles pedestrian access between public and secure areas, and the passage Is released for free access upon receiption of a valid open signal and closed automatically affter passage.

The unauthorized person attempts to tailgate on a valid entry, or entry without authorization will be recognized and trigger sound alarm.

Drop arm turnstile JDYZZ-1A is an efficient crowd control solution with the combination of a high bidirectional flow of passage with medium levels of security, effectively organizing passageways with increased requirements for design and comfort of passage.

Finally, drop arm security turnstile JDYZZ-1A provides single directional and bi-directional entry control, and automatically release the passage for free access In case of power failure or emergency.

arm barrier gate distributor Reliable & affordable drop arm turnstile, drop arm security turnstile, optical lane drop-arm turnstile supports rapid throughput Drop arm turnstile JDYZZ-1A is made of high quality stainless sheet and designed with intuitive colored LED lights guiding users from entry through the authorization and onto the secured side, providing a fast, durable, smooth way with low noise and low power consumption.

By using an array of optical sensors to determine the number and direction of persons passing through the security turnstile lane, optical lane drop-arm turnstile JDYZZ-1A efficiently controlles pedestrian access between public and secure areas, and the passage Is released for free access upon receiption of a valid open signal and closed automatically affter passage.

The unauthorized person attempts to tailgate on a valid entry, or entry without authorization will be recognized and trigger sound alarm.

Drop arm turnstile JDYZZ-1A is an efficient crowd control solution with the combination of a high bidirectional flow of passage with medium levels of security, effectively organizing passageways with increased requirements for design and comfort of passage.

Finally, drop arm security turnstile JDYZZ-1A provides single directional and bi-directional entry control, and automatically release the passage for free access In case of power failure or emergency.

Drop Arm TurnstileFeaturers

1 - Visual graphics provide guidance to users

2 - Superior unauthorized passage detection

3 - Virtually maintenance free

4 - Integrates easily with access control systems

5 - Supports rapid throughput

6 - Multiple operational modes including controlled passage, free passage and visitor

7 - Quick and smooth motorized drop arm for bi-directional operation.

8 - LED end displays indicate direction status

9 - Provides a clear path for the user as they navigate the passage

10 - Assures that only one person enters for each authorized credential Drop Arm Turnstile Applications

Offices

Banks

Public institutions

Data centres

Commercial office buildings

Government agencies Drop Arm Turnstile Parameters

Housing Material: #304 stainless sheet

Dimension: 1200 x 165 x 990mm Power Supply: AC220V / AC110V, 50/ 60 Hz

Lane Width: 600mm

Drive Motor: DC 24V brush motor

Pass Speed: 40 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication Interface: RS485

Rest Time after Power On: 3 seconds

Open Time: 0.2 second

Life Cycle: 3 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor (with shelter)
