Ae101a Oxygen Gas Filling Pump - China

china coal 0001

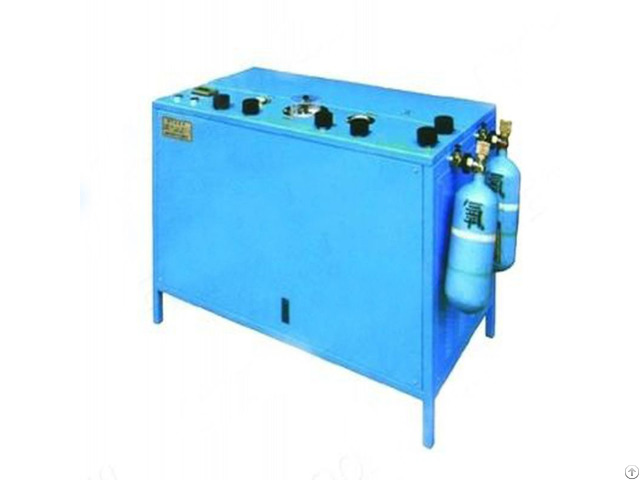

10 - AE101A Oxygen Gas Filling Pump

Keywords: Oxygen filling pump, gas filling pump, oxygen gas filling pump, oxygen filling pump for sale

Introduction of AE101A Oxygen Gas Filling Pump

AE101A Oxygen Gas Filling Pump is designed for a variety of oxygen breathing apparatus, compressed oxygen self-rescuer and oxygen equipment needs filling high pressure gas transfer and filling design of special equipment.

It will boost the gas source gas bottle filled to the stingy bottle, so the gas pressure within the cylinder up to the required pressure.

The products are mainly for filling oxygen, but also for boosting filling carbon dioxide, nitrogen and other gases.

Features of AE101A Oxygen Gas Filling Pump

1 - Suitable for filling oxygen and inflammable gases.

2 - high charging efficiency.

3 - Product rigorous structure, small size, light weight.

4 - The product is simple, easy maintenance, low cost.

Applications of AE101A Oxygen Gas Filling Pump

Mine rescue, fire protection, petroleum, chemical industry, metallurgy, medical, transportation, shipbuilding, defense

Parameter of AE101A Oxygen Gas Filling Pump

Model AE101A AE102A

Inflation pressure 20Mpa 30Mpa

Displacement under suction conditions 5L/min 3L/min

Voltage 220V/380V 220V/380V

Maximum compression ratio 4 8

Compressor stages 1 2

Power 1.1KW 2.2KW

Working temperature 0-60℃ 0-60℃

Size 860*565*640mm 940*500*700mm

Weight 116kg 120kg
