S And A Industrial Chiller Cw 6000 For Cooling Vacum System - China

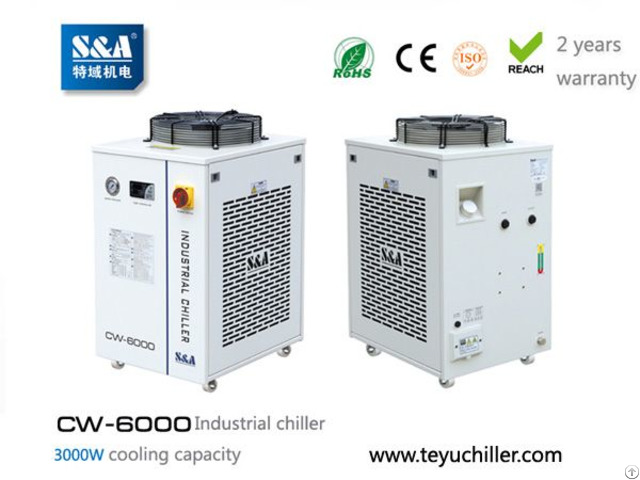

S&A industrial chiller CW-6000 for cooling vacum system

S&A industrial recirculating water chiller model CW-6000 is produced by Guangzhou Teyu Electromechanical Co., Ltd. For over 16 years in screening and training, we integrate lots of superior components suppliers.

Our brands"S&A" and "TEYU" have gained approval and trust from thousands of manufacturer at home and abroad which enables our product export rate maintained at over 60% in long-term.

S&A chiller CW-6000 is widely applied for cooling vacuum system.

S&A recirculating water chiller CW-6000 has 3000W cooling capacity with ±0.5℃ stability, water filter installed and r410a refrigerant loaded.

S&A has complete material purchasing ecosystem and independent R&D on sheet metal, evaporator, condenser and cores parts of chiller.

Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability.

S&A chiller has excellent laboratory testing system, simulates actual working environment for chiller.

CW-6000 has 2 temperature control modes as constant temperature and intelligent temperature control.

Under intelligent mode, the water temperature is adjusted according to ambient temperature.

Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.

Water chiller parameter: Voltage: 110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a Pump power: 0.05KW/0.1KW/0.37~0.75KW; Tank capacity: 15L

Max.

lift: 10M/25M/28~53M; Max.

flow: 13L/min- 70L/min

N.

W: 60Kgs; G.

W: 70Kgs;

Dimension : 67 X 47 X 89 cm (L X W X H); Packing dimension: 74 X 60 X 109 cm(L X W X H) About S&A Brand

S&A(TEYU) was founded in 2002 - After 15 years of development, the headquarter covers an area of 18, 000 square meters, and has about 250 employees.

Why choose S&A

Product Advantages: 1 - With 11 patent certificates, CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warrenty

2.

±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;

3 - Establish logistic warehouses at USA and Europe;

Manufacturing Advantages: 1 - Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;

2 - Anual ouput 60, 000 units, product exports rate above 60%；

3 - Standard bulk production, standard parts rate up to 80% ；

4 - With excellent laboratory testing system, simulates actual working environment for chiller.
